Part Number # 1418N4ALB6
SKU # 2408755
1418N4ALB6
Hammond Manufacturing 1418N4ALB6 Enclosure
Part Number # 1418N4ALB6
SKU # 2408755
$682.66 / Each
Typical price:$1282.07 / Each
Hammond Manufacturing 1418N4ALB6 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418N4ALB6 |
| SKU #: | 2408755 |
| NEMA Rating: | NEMA 4/4X/12/13/IP66 |
| Series: | 1418 N4 AL |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398038300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$682.66 / Each
Typical price:$1282.07 / Each
Quantity:
Hammond Manufacturing 1418N4ALB6 Enclosure
Brand: Hammond Manufacturing
Part Number: 1418N4ALB6
Hammond Enclosure, Series: 1418 N4 AL, 12 in Width, 6 in Depth, 16 in Height, NEMA 4/4X/12/13/IP66, Hinged Cover, 13 in L x 9 in W Panel, Lock: Padlock, 1152 cu-in, Wall Mount, Aluminum, Unpainted, Aluminum
Additional Description: HAMM-1418N4ALB6 NEMA 4 ALUM ENCL 16X12X6
Catalog Description: N4X Wallmount Encl w/panel - 16 x 12 x 6 - Alum
1418N4ALB6 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures1418N4ALB6 Item Features
- Formed from 0.081 in body, 0.1 in door Type 5052 H-32 aluminum
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Aluminum continuous hinge on door may be removed by pulling the aluminum hinge pin
- Door is secured with easily operated aluminum clamps
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
1418N4ALB6 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2408755Part Number #1418N4ALB6UNSPSC39121324UPC00062398038300

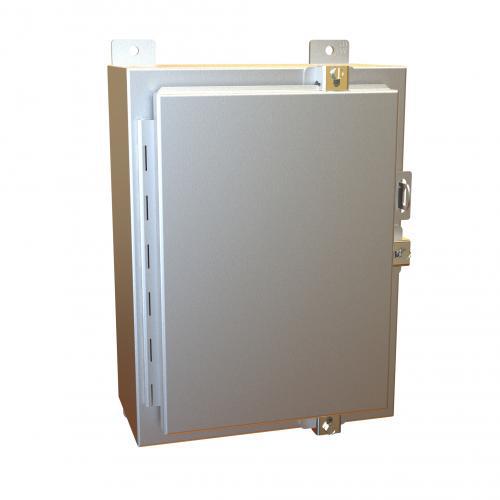

Image provided may only be a representation of final product and may include optional equipment
