Part Number # 1418N4ALC6
SKU # 2408756
Image Disclaimers Message
Brand: Hammond Manufacturing
1418N4ALC6

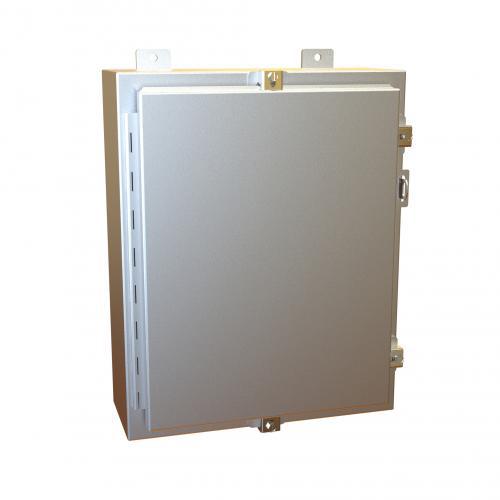

Hammond Manufacturing 1418N4ALC6 Enclosure
Part Number # 1418N4ALC6
SKU # 2408756
$809.86 / Each
Typical price:$1520.94 / Each
Hammond Manufacturing 1418N4ALC6 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418N4ALC6 |
| SKU #: | 2408756 |
| Capacity: | 1920 cu-in |
| Finish: | Unpainted |
| NEMA Rating: | NEMA 4/4X/12/13/IP66 |
| Panel Size: | 17 in L x 13 in W |
| Series: | 1418 N4 AL |
| Color: | Aluminum |
| Country of origin: | CA |
| Depth: | 6 in |
| Height: | 20 in |
| Material: | Aluminum |
| Mounting type: | Wall |
| Width: | 16 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398038310 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$809.86 / Each
Typical price:$1520.94 / Each
Quantity:
- Hammond Enclosure, Series: 1418 N4 AL, 16 in Width, 6 in Depth, 20 in Height, NEMA 4/4X/12/13/IP66, Hinged Cover, 17 in L x 13 in W Panel, Lock: Padlock, 1920 cu-in, Wall Mount, Aluminum, Unpainted, Aluminum
1418N4ALC6 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures1418N4ALC6 Item Features
- Formed from 0.081 in body, 0.1 in door Type 5052 H-32 aluminum
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Aluminum continuous hinge on door may be removed by pulling the aluminum hinge pin
- Door is secured with easily operated aluminum clamps
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
1418N4ALC6 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2408756Part Number #1418N4ALC6UNSPSC39121324UPC00062398038310
