Part Number # 1418N4C10
SKU # 2448751
Image Disclaimers Message
Brand: Hammond Manufacturing
1418N4C10
Hammond Manufacturing 1418N4C10
Part Number # 1418N4C10
SKU # 2448751
$589.35 / Each
Typical price:$889.80 / Each
Hammond Manufacturing 1418N4C10 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418N4C10 |
| SKU #: | 2448751 |
| Capacity: | 3200 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 3R/4/12/13/IP66 |
| Panel Size: | 17 in L x 13 in W |
| Series: | 1418 N4 |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 10 in |
| Height: | 20 in |
| Material: | 14 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 16 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398037900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$589.35 / Each
Typical price:$889.80 / Each
Quantity:
Hammond Manufacturing 1418N4C10
Brand: Hammond Manufacturing
Part Number: 1418N4C10

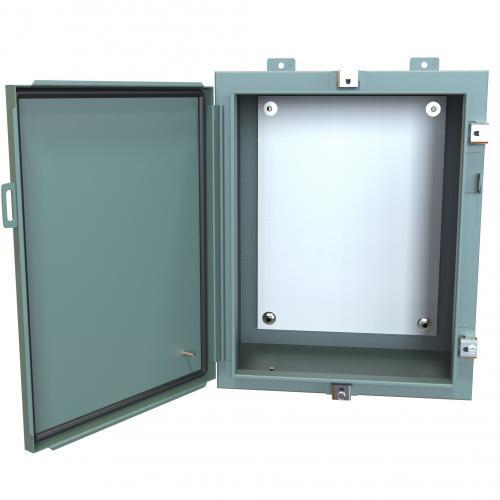

Hammond® Enclosure, Series: 1418 N4, 16 in Width, 10 in Depth, 20 in Height, NEMA 3R/4/12/13/IP66, Hinged Cover, 17 in L x 13 in W Panel, Lock: Padlock, 3200 cu-in, Wall Mount, 14 ga Mild Steel, Powder Coated, Gray
Additional Description: HAMM-1418N4C10 1418N4 PANEL ENCL 20X16X10
Catalog Description: N4 Wallmount Encl w/panel - 20 x 16 x 10 - Steel/Gray
1418N4C10 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures1418N4C10 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
1418N4C10 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2448751Part Number #1418N4C10UNSPSC39121324UPC00062398037900
