Part Number # 1418N4D8
SKU # 2461443
1418N4D8
Hammond Manufacturing 1418N4D8
Part Number # 1418N4D8
SKU # 2461443
$614.99 / Each
Typical price:$928.50 / Each
Hammond Manufacturing 1418N4D8 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418N4D8 |
| SKU #: | 2461443 |
| Capacity: | 3200 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 3R/4/12/13/IP66 |
| Panel Size: | 17 in L x 17 in W |
| Series: | 1418 N4 |
| Country of origin: | CA |
| Depth: | 8 in |
| Height: | 20 in |
| Material: | 14 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 20 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398037920 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$614.99 / Each
Typical price:$928.50 / Each
Quantity:

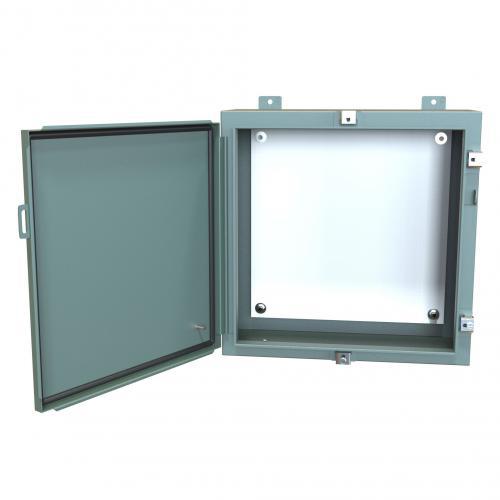

- Hammond Enclosure, Series: 1418 N4, 20 in Width, 8 in Depth, 20 in Height, NEMA 3R/4/12/13/IP66, Hinged Cover, 17 in L x 17 in W Panel, Lock: Padlock, 3200 cu-in, Wall Mount, 14 ga Mild Steel, Powder Coated, Gray
1418N4D8 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures1418N4D8 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
1418N4D8 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2461443Part Number #1418N4D8UNSPSC39121324UPC00062398037920
Image provided may only be a representation of final product and may include optional equipment
