Brand: Hammond Manufacturing
1418N4SSF8
Hammond Manufacturing 1418N4SSF8
Part Number # 1418N4SSF8
SKU # 2449284
$1494.47 / Each
Typical price:$2806.69 / Each
Hammond Manufacturing 1418N4SSF8 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418N4SSF8 |
| SKU #: | 2449284 |
| Capacity: | 4800 cu-in |
| Finish: | Smooth Brushed/Unpainted |
| NEMA Rating: | NEMA 3R/13/4/4X/12/IP66 |
| Panel Size: | 27 in L x 17 in W |
| Series: | 1418 N4 SS |
| Country of origin: | CA |
| Depth: | 8 in |
| Height: | 30 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 20 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398038500 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1494.47 / Each
Typical price:$2806.69 / Each
Quantity:
Hammond Manufacturing 1418N4SSF8
Brand: Hammond Manufacturing
Part Number: 1418N4SSF8

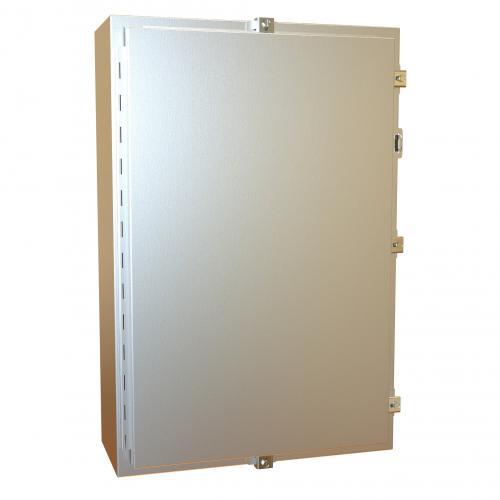

Hammond® Enclosure, Series: 1418 N4 SS, 20 in Width, 8 in Depth, 30 in Height, NEMA 3R/13/4/4X/12/IP66, Hinged Cover, 27 in L x 17 in W Panel, Lock: Padlock, 4800 cu-in, Wall Mount, 304 Stainless Steel, Smooth Brushed/Unpainted
Additional Description: HAMM-1418N4SSF8 NEMA 4X SS ENCL 30X20X8
Catalog Description: N4X Wallmount Encl w/panel - 30 x 20 x 8 - 304 SS
1418N4SSF8 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures1418N4SSF8 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door stiffeners are provided in the larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
1418N4SSF8 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2449284Part Number #1418N4SSF8UNSPSC39121324UPC00062398038500
