Part Number # 1418N4SSJ8
SKU # 2367705
Image Disclaimers Message
Brand: Hammond Manufacturing
1418N4SSJ8

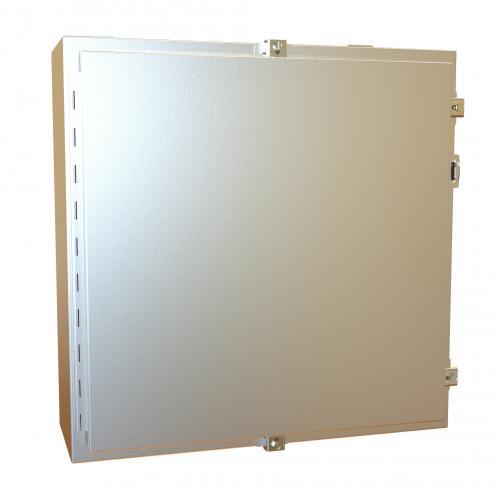

Hammond Manufacturing 1418N4SSJ8 Enclosure
Part Number # 1418N4SSJ8
SKU # 2367705
$1449.70 / Each
Typical price:$2722.62 / Each
Hammond Manufacturing 1418N4SSJ8 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418N4SSJ8 |
| SKU #: | 2367705 |
| Capacity: | 4608, 4608 cu-in |
| Finish: | Smooth Brushed/Unpainted |
| NEMA Rating: | NEMA 3R/13/4/4X/12/IP66, NEMA 3R/4/4X/12/13/IP66 |
| Panel Size: | 21 in L x 21 in W |
| Series: | 1418 N4 SS, 1418 N4 SS Series |
| Country of origin: | CA |
| Depth: | 8, 8 in |
| Height: | 24 in |
| Length: | 24 |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 24, 24 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980385402 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1449.70 / Each
Typical price:$2722.62 / Each
Quantity:
- Hammond Enclosure, Series: 1418 N4 SS Series, 24 in Width, 8 in Depth, 24 in Height, NEMA 3R/4/4X/12/13/IP66 NEMA Rating, Hinged Cover, 21 in L x 21 in W Panel, Lock: Padlock, 4608 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed/Unpainted
1418N4SSJ8 Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures1418N4SSJ8 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door stiffeners are provided in the larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured-in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
1418N4SSJ8 Standards
CSA Certified|CE Marking|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2367705Part Number #1418N4SSJ8UNSPSC39121324UPC00623980385402
