Brand: Hammond Manufacturing
1418T20

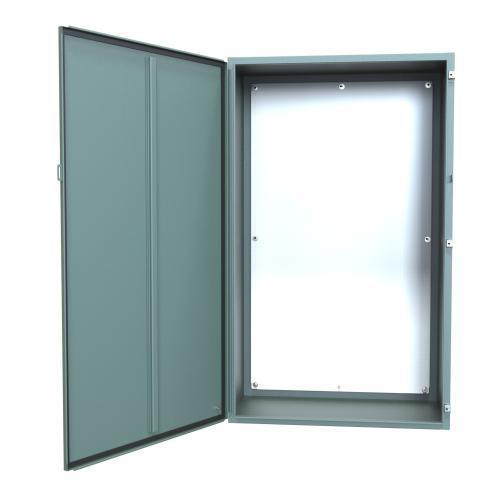

Hammond Manufacturing 1418T20 Enclosure
Part Number # 1418T20
SKU # 2428660
$1815.23 / Each
Typical price:$2740.64 / Each
Hammond Manufacturing 1418T20 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1418T20 |
| SKU #: | 2428660 |
| Capacity: | 43200 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 12/13/IP54 |
| Panel Size: | 57 in L x 33 in W |
| Series: | 1418 |
| Country of origin: | CA |
| Depth: | 20 in |
| Height: | 60 in |
| Material: | 14 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 36 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398037180 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1815.23 / Each
Typical price:$2740.64 / Each
Quantity:
- Hammond Enclosure, Series: 1418, 36 in Width, 20 in Depth, 60 in Height, NEMA 12/13/IP54, Hinged Cover, 57 in L x 33 in W Panel, Lock: Padlock, 43200 cu-in, Wall Mount, 14 ga Mild Steel, Powder Coated, Gray
1418T20 Application
House Electrical, Electronic, Hydraulic, Pneumatic Controls and Instrument Applications1418T20 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Continuously hinged doors may be removed by pulling the hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- oil-resistant gaskets are permanently secured
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides a degree of protection from falling dirt, dust, oil and water
1418T20 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL ListedSKU #2428660Part Number #1418T20UNSPSC39121324UPC00062398037180
