Brand: Hammond Manufacturing
1422N4SSF24F

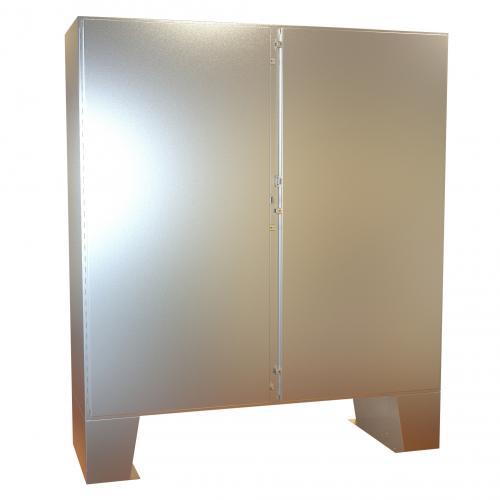

Hammond Manufacturing 1422N4SSF24F Enclosure
Part Number # 1422N4SSF24F
SKU # 2399528
$15244.61 / Each
Typical price:$28630.11 / Each
Hammond Manufacturing 1422N4SSF24F Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1422N4SSF24F |
| SKU #: | 2399528 |
| Capacity: | 128330.91 cu-in |
| Finish: | Brushed |
| NEMA Rating: | NEMA 3R/4/4X/12/13/IP66 |
| Panel Size: | 68 in L x 68 in W |
| Series: | 1422 N4 SS |
| Type: | 2-Door |
| Country of origin: | CA |
| Depth: | 24.69 in |
| Height: | 72.13 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Floor |
| Width: | 72.06 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398000701 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15244.61 / Each
Typical price:$28630.11 / Each
Quantity:
- Hammond Enclosure, 2-Door, Series: 1422 N4 SS, 72.06 in Width, 24.69 in Depth, 72.13 in Height, NEMA 3R/4/4X/12/13/IP66, Hinged Cover, 68 in L x 68 in W Panel, Lock: Padlock, 128330.91 cu-in, Floor Mount, 304 Stainless Steel, Brushed
1422N4SSF24F Application
House Electrical, Electronic, Hydraulic, Pneumatic Controls and Instrument Applications1422N4SSF24F Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles
- Center post is removable for easy installation of the inner panel
- Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants
- Continuously hinged doors may be removed by pulling the stainless steel hinge pin
- Doors are secured with heavy duty stainless steel clamps
- 12 in floor stands are welded to the enclosure
- Seamless poured in place gasket
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- Body stiffeners are provided in the larger enclosures for extra rigidity
- Panel supports are provided for easy panel installation
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided
1422N4SSF24F Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2399528Part Number #1422N4SSF24FUNSPSC39121324UPC00062398000701
