Part Number # 1435C
SKU # 2409001
1435C

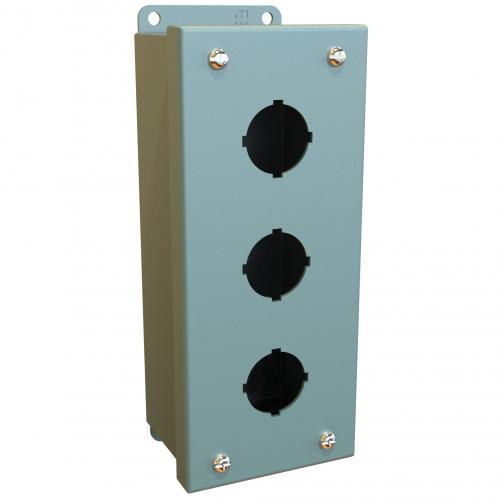

Hammond Manufacturing 1435C Pushbutton Enclosure
Part Number # 1435C
SKU # 2409001
$91.81 / Each
Typical price:$138.61 / Each
Hammond Manufacturing 1435C Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1435C |
| SKU #: | 2409001 |
| Capacity: | 71.5 cu-in |
| Series: | 1435 Series |
| Material: | Mild Steel |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398040580 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$91.81 / Each
Typical price:$138.61 / Each
Quantity:
Hammond Manufacturing 1435C Pushbutton Enclosure
Brand: Hammond Manufacturing
Part Number: 1435C
Hammond Pushbutton Enclosure, 3-Hole, Series: 1435 Series, 8 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12/13 NEMA Rating, Screw Cover, 71.5 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Additional Description: HAMM-1435C NEMA12 P-BTN ENCL 8 .0 X 3 .2
Catalog Description: Pushbutton Encl - 3 PB x 30.5mm - Steel/Gray
1435C Application
For standard heavy duty oil tight pushbuttons, switches and pilot lights1435C Item Features
- Formed 14 ga steel except A and B which are 16 ga
- Smooth, continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring
- Oil-resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection from dirt, dust, oil and water
1435C Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2409001Part Number #1435CUNSPSC39121326UPC00062398040580
Image provided may only be a representation of final product and may include optional equipment
