1435F
Hammond Manufacturing 1435F
Part Number # 1435F
SKU # 2469606
$120.79 / Each
Typical price:$182.38 / Each
Hammond Manufacturing 1435F Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1435F |
| SKU #: | 2469606 |
| Finish: | Phosphatized/Powder Coated |
| Panel Size: | 6.5 in L x 5.21 in W |
| Series: | 1435 |
| Material: | 14 ga Mild Steel |
| Mounting type: | Bracket |
| Width: | 6.25 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398040600 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$120.79 / Each
Typical price:$182.38 / Each
Quantity:
- Hammond Pushbutton Enclosure, Series: 1435, 7-1/4 in Length, 6.25 in Width, 3 in D, NEMA 12/13, Hinged/Removable Cover, 6.5 in L x 5.21 in W Panel, 4 Outlets, Bracket Mount, 14 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
1435F Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and water1435F Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 30.5 mm hole
1435F Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2469606Part Number #1435FUNSPSC39121326UPC00062398040600

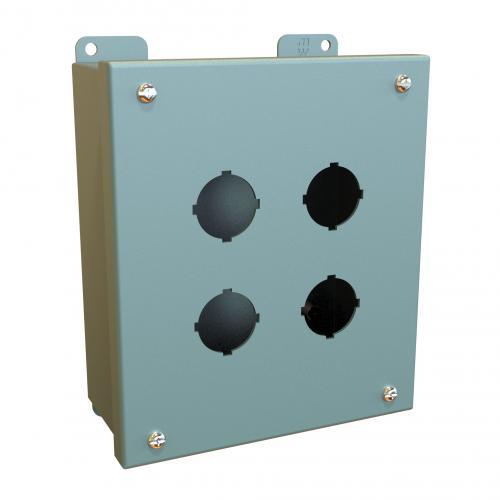

Image provided may only be a representation of final product and may include optional equipment
