1435MSSK
Hammond Manufacturing 1435MSSK
Part Number # 1435MSSK
SKU # 2467193
$448.74 / Each
Typical price:$842.75 / Each
Hammond Manufacturing 1435MSSK Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1435MSSK |
| SKU #: | 2467193 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4/4X |
| Panel Size: | 8.75 in L x 7.46 in W |
| Series: | 1435SS |
| Material: | 14 ga 304 Stainless Steel |
| UNSPSC: | 39121326 |
| UPC: | 00062398015365 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$448.74 / Each
Typical price:$842.75 / Each
Quantity:

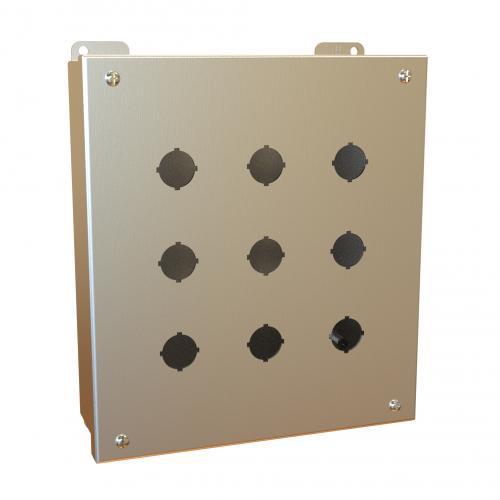

- Hammond Pushbutton Enclosure, Series: 1435SS, 9-1/2 in Length, 8-1/2 in Width, 3 in D, NEMA 3R/4/4X, Hinged/Removable Cover, 8.75 in L x 7.46 in W Panel, 9 Outlets, Bracket Mount, 14 ga 304 Stainless Steel, Smooth Brushed, Natural
1435MSSK Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and large amounts of water from any angle1435MSSK Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive stainless steel cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 22.5 mm hole
1435MSSK Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508|RoHS CompliantSKU #2467193Part Number #1435MSSKUNSPSC39121326UPC00062398015365
Image provided may only be a representation of final product and may include optional equipment
