Part Number # 1435S
SKU # 2410171
Image Disclaimers Message
1435S

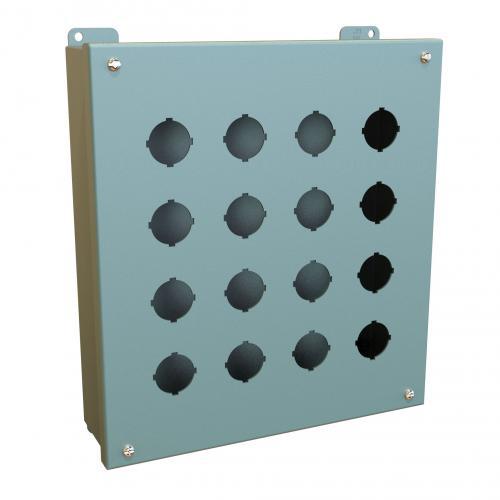

Hammond Manufacturing 1435S Pushbutton Enclosure
Part Number # 1435S
SKU # 2410171
$198.42 / Each
Typical price:$299.56 / Each
Hammond Manufacturing 1435S Key Features
Brand: | Hammond Manufacturing |
---|---|
Part Number # : | 1435S |
SKU #: | 2410171 |
Finish: | Phosphatized/Powder Coated |
NEMA Rating: | NEMA 12/13 |
Number of Outlets: | 16 |
Panel Size: | 11 in L x 9.71 in W |
Series: | 1435 |
Color: | ANSI 61 Gray |
Country of origin: | CA |
Depth: | 3 in |
Length: | 11-3/4 in |
Material: | 14 ga Mild Steel |
Mounting type: | Bracket |
Width: | 10-3/4 in |
Manufacturer Name: | Hammond Manufacturing |
UNSPSC: | 39121326 |
UPC: | 00062398040640 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$198.42 / Each
Typical price:$299.56 / Each
Quantity:
- Hammond Pushbutton Enclosure, Series: 1435, 11-3/4 in Length, 10-3/4 in Width, 3 in D, NEMA 12/13, Hinged/Removable Cover, 11 in L x 9.71 in W Panel, 16 Outlets, Bracket Mount, 14 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
1435S Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and water1435S Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 30.5 mm hole
1435S Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2410171Part Number #1435SUNSPSC39121326UPC00062398040640
