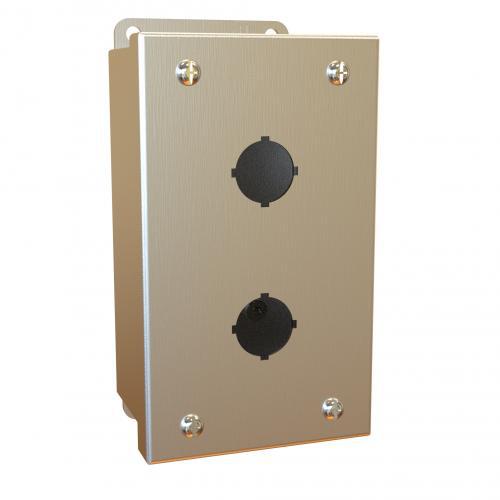

Hammond Manufacturing 1435S16B Pushbutton Enclosure
Part Number # 1435S16B
SKU # 2409842
$260.62 / Each
Typical price:$489.47 / Each
Hammond Manufacturing 1435S16B Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1435S16B |
| SKU #: | 2409842 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4/4X/IP66 |
| Number of Outlets: | 2 |
| Panel Size: | 5 in L x 2.21 in W |
| Series: | 1435SS |
| Color: | Natural |
| Country of origin: | CA |
| Depth: | 2-3/4 in |
| Length: | 5-3/4 in |
| Material: | 16 ga 316 Stainless Steel |
| Mounting type: | Bracket |
| Width: | 3-1/4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398015378 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$260.62 / Each
Typical price:$489.47 / Each
Quantity:
- Hammond Pushbutton Enclosure, Series: 1435SS, 5-3/4 in Length, 3-1/4 in Width, 2-3/4 in D, NEMA 3R/4/4X/IP66, 5 in L x 2.21 in W Panel, 2 Outlets, Bracket Mount, 16 ga 316 Stainless Steel, Smooth Brushed, Natural
1435S16B Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and large amounts of water from any angle1435S16B Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive stainless steel cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 30.5 mm hole
1435S16B Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508|RoHS CompliantSKU #2409842Part Number #1435S16BUNSPSC39121326UPC00062398015378
