Part Number # 1435SSA
SKU # 2292964
1435SSA

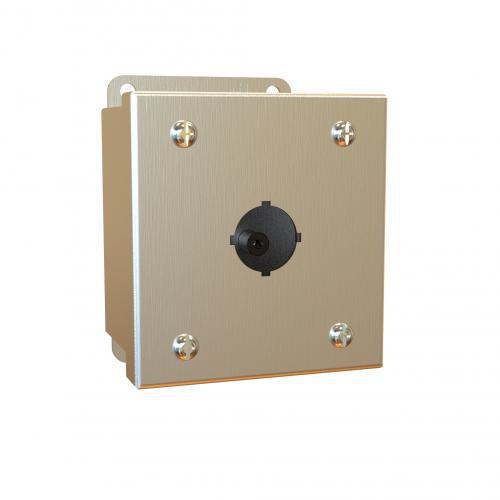

Hammond Manufacturing 1435SSA Pushbutton Enclosure
Part Number # 1435SSA
SKU # 2292964
$174.16 / Each
Typical price:$327.08 / Each
Hammond Manufacturing 1435SSA Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1435SSA |
| SKU #: | 2292964 |
| Capacity: | 31.28, 31.2812 cu-in |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4/4X |
| Series: | 1435SS, 1435SS Series |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00623980410005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$174.16 / Each
Typical price:$327.08 / Each
Quantity:
Hammond Manufacturing 1435SSA Pushbutton Enclosure
Brand: Hammond Manufacturing
Part Number: 1435SSA
Hammond Pushbutton Enclosure, 1-Hole, Series: 1435SS Series, 3-1/2 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 3R/4/4X NEMA Rating, Hinged Screw Cover, 31.2812 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
Additional Description: HAMM-1435SSA PUSHBUTTON ENCL 1 HOLE 304 SS
Catalog Description: Pushbutton Encl - 1 PB x 30.5mm - 304 SS
1435SSA Application
For standard heavy duty oil tight pushbuttons, switches and pilot lights1435SSA Item Features
- Formed 14 ga 304 stainless steel except A and B which are 16 ga 304 or 316 SS
- Smooth, continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive stainless steel cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring
- Oil-resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection from dirt, dust, oil and large amounts of water from any angle or where highly corrosive conditions exist
1435SSA Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2292964Part Number #1435SSAUNSPSC39121326UPC00623980410005
Image provided may only be a representation of final product and may include optional equipment
