1435SSB

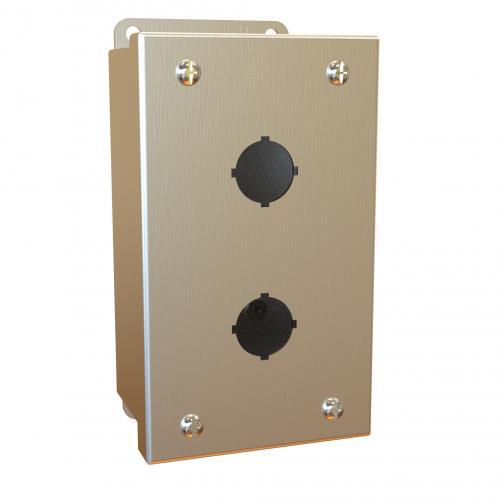

Hammond Manufacturing 1435SSB Pushbutton Enclosure
Part Number # 1435SSB
SKU # 2292963
$205.44 / Each
Typical price:$385.82 / Each
Hammond Manufacturing 1435SSB Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1435SSB |
| SKU #: | 2292963 |
| Capacity: | 51.39, 51.39 cu-in |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4X |
| Series: | 1435SS |
| Type: | 2-Hole |
| Color: | Natural |
| Country of origin: | CA |
| Depth: | 2-3/4, 2-3/4 in |
| Length: | 5-3/4, 5-3/4 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00623980410029 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$205.44 / Each
Typical price:$385.82 / Each
Quantity:
- Hammond Pushbutton Enclosure, 2-Hole, Series: 1435SS, 5-3/4 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 3R/4X, Hinged Screw Cover, 51.39 cu-in, Wall Mount, 304 Stainless Steel, Smooth Brushed, Natural
1435SSB Application
For standard heavy duty oil tight pushbuttons, switches and pilot lights1435SSB Item Features
- Formed 14 ga 304 stainless steel except A and B which are 16 ga
- Smooth, continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive stainless steel cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection from dirt, dust, oil and large amounts of water from any angle or where highly corrosive conditions exist
1435SSB Standards
RoHS Compliant|CSA Certified|CE Certified|UL 508A|IEC 60529SKU #2292963Part Number #1435SSBUNSPSC39121326UPC00623980410029
