Hammond Manufacturing 1437B Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1437B |
| SKU #: | 2449064 |
| Capacity: | 114 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 12/13 |
| Series: | 1437 |
| Type: | 2-Hole Extra Deep |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 4-3/4 in |
| Length: | 6 in |
| Material: | Mild Steel |
| Mounting type: | Wall |
| Width: | 4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398041130 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$102.97 / Each
Typical price:$155.48 / Each
Quantity:

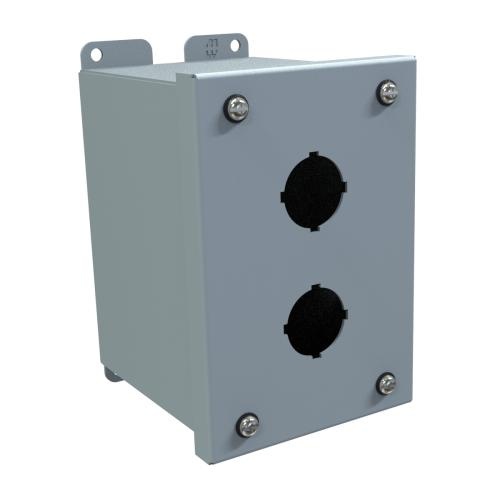

- Hammond Pushbutton Enclosure, 2-Hole Extra Deep, Series: 1437, 6 in Length, 4 in Width, 4-3/4 in Depth, NEMA 12/13, Hinged Screw Cover, 114 cu-in, Wall Mount, Mild Steel, Powder Coated, Gray
1437B Application
For standard heavy duty oil tight pushbuttons, switches and pilot lights1437B Item Features
- Formed from 14 ga steel except A which is 16 ga
- Smooth, continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws fasten into threaded, sealed wells
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection from dirt, dust, oil and water
1437B Standards
RoHS Compliant|CSA Certified|CE Certified|UL 508A|IEC 60529SKU #2449064Part Number #1437BUNSPSC39121326UPC00062398041130
