1437MB

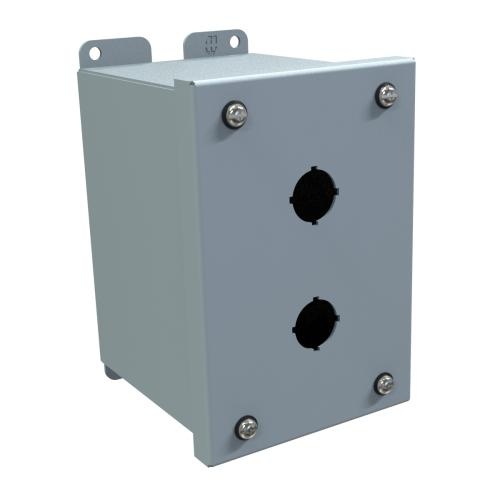

Hammond Manufacturing 1437MB Pushbutton Enclosure
Part Number # 1437MB
SKU # 2437040
$99.92 / Each
Typical price:$150.87 / Each
Hammond Manufacturing 1437MB Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1437MB |
| SKU #: | 2437040 |
| Finish: | Phosphatized/Powder Coated |
| NEMA Rating: | NEMA 12/13 |
| Number of Outlets: | 2 |
| Panel Size: | 5.25 in L x 2.96 in W |
| Series: | 1437 |
| Type: | Extra Deep |
| Color: | ANSI 61 Gray |
| Country of origin: | CA |
| Depth: | 4-3/4 in |
| Length: | 6 in |
| Material: | 14 ga Mild Steel |
| Mounting type: | Bracket |
| Width: | 4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398027929 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$99.92 / Each
Typical price:$150.87 / Each
Quantity:
- Hammond Pushbutton Enclosure, Extra Deep, Series: 1437, 6 in Length, 4 in Width, 4-3/4 in D, NEMA 12/13, Hinged/Removable Cover, 5.25 in L x 2.96 in W Panel, 2 Outlets, Bracket Mount, 14 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
1437MB Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and water1437MB Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws fasten into threaded, sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 22.5 mm hole
1437MB Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2437040Part Number #1437MBUNSPSC39121326UPC00062398027929
