Part Number # 1437MH
SKU # 2464105
1437MH
Hammond Manufacturing 1437MH
Part Number # 1437MH
SKU # 2464105
$150.79 / Each
Typical price:$227.67 / Each
Hammond Manufacturing 1437MH Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1437MH |
| SKU #: | 2464105 |
| Finish: | Phosphatized/Powder Coated |
| Panel Size: | 8.75 in L x 5.21 in W |
| Series: | 1437 |
| Type: | Extra Deep |
| Length: | 9-1/2 in |
| Width: | 6.25 in |
| UNSPSC: | 39121326 |
| UPC: | 00062398037935 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$150.79 / Each
Typical price:$227.67 / Each
Quantity:

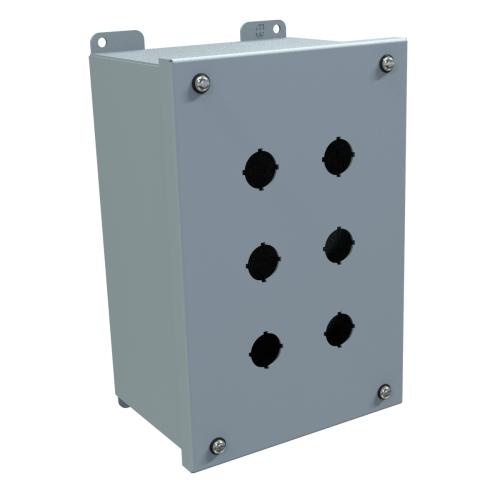

- Hammond Pushbutton Enclosure, Extra Deep, Series: 1437, 9-1/2 in Length, 6.25 in Width, 4-3/4 in D, NEMA 12/13, Hinged/Removable Cover, 8.75 in L x 5.21 in W Panel, 6 Outlets, Bracket Mount, 14 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
1437MH Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and water1437MH Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws fasten into threaded, sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 22.5 mm hole
1437MH Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2464105Part Number #1437MHUNSPSC39121326UPC00062398037935
Image provided may only be a representation of final product and may include optional equipment
