Part Number # 1437MSSB
SKU # 2368722
Image provided may only be a representation of
final product and may include optional equipment
1437MSSB

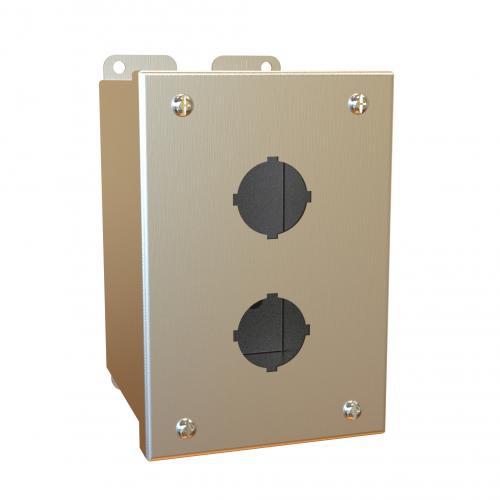

Hammond Manufacturing 1437MSSB Pushbutton Enclosure
Part Number # 1437MSSB
SKU # 2368722
$267.38 / Each
Typical price:$502.14 / Each
Hammond Manufacturing 1437MSSB Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1437MSSB |
| SKU #: | 2368722 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 4/4X |
| Number of Outlets: | 2 |
| Panel Size: | 5.25 in L x 2.96 in W |
| Series: | 1437SS |
| Type: | Extra Deep |
| Country of origin: | CA |
| Depth: | 4.8, 4.8 in |
| Length: | 6, 6 in |
| Material: | 14 ga 304 Stainless Steel |
| Mounting type: | Bracket |
| Width: | 4, 4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00623980433837 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$267.38 / Each
Typical price:$502.14 / Each
Quantity:
Hammond Manufacturing 1437MSSB Pushbutton Enclosure
Brand: Hammond Manufacturing
Part Number: 1437MSSB
Hammond Pushbutton Enclosure, Extra Deep, Series: 1437SS, 6 in Length, 4 in Width, 4.8 in D, NEMA 4/4X, Hinged/Removable Cover, 5.25 in L x 2.96 in W Panel, 2 Outlets, Bracket Mount, 14 ga 304 Stainless Steel, Smooth Brushed, Natural Stainless Steel
Additional Description: HAMM-1437MSSB 2PB 304SS 6X4X4.8
Catalog Description: Pushbutton Encl - Extra Deep - 2 PB x 22.5mm - 304SS
1437MSSB Application
For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and water1437MSSB Item Features
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws fasten into threaded, sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 22.5 mm hole
1437MSSB Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2368722Part Number #1437MSSBUNSPSC39121326UPC00623980433837
