Part Number # 1447SN4E8
SKU # 2418272
1447SN4E8
Hammond Manufacturing 1447SN4E8 Disconnect Enclosure
Part Number # 1447SN4E8
SKU # 2418272
$899.35 / Each
Typical price:$1357.85 / Each
Hammond Manufacturing 1447SN4E8 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1447SN4E8 |
| SKU #: | 2418272 |
| Capacity: | 6091.2 cu-in |
| Series: | 1447S N4 |
| Material: | 14 ga Mild Steel |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398041028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$899.35 / Each
Typical price:$1357.85 / Each
Quantity:
Hammond Manufacturing 1447SN4E8 Disconnect Enclosure
Brand: Hammond Manufacturing
Part Number: 1447SN4E8
Hammond® Disconnect Enclosure, Series: 1447S N4, 25.38 in Width, 8 in Depth, 30 in Height, NEMA 3R/4/12/IP66, Hinged Cover, 27 in L x 21 in W Panel, 6091.2 cu-in, Wall Mount, 14 ga Mild Steel, Gray
Additional Description: HAMM-1447SN4E8 N4 DISCONNECT ENCL
Catalog Description: N4 Disconnect Encl w/panel - 30 x 25.38 x 8 - Steel/Gray
1447SN4E8 Application
ABB Controls Disconnect Switches and Circuit Breakers, Allen Bradley 1494V Disconnect Switches and Circuit Breaker Operators, C-H Westinghouse C361 Disconnect Switches and C371 Circuit Breakers, General Electric Type STDA Disconnect Switches and SpectraFlex Circuit Breakers, Siemens I-T-E Max-Flex Disconnect Switches and Circuit Breakers, Square D class 9422 Disconnect Switches and Circuit Breakers Applications1447SN4E8 Item Features
- Continuously welded seams
- Larger sizes include door and body stiffeners
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Cutouts and holes are provided to suit the flange handle operating mechanism
- Continuously hinged doors may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Cover interlock bracket is welded to the door
- Seamless poured in place gasket
- Welded brackets provide for enclosure mounting
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
1447SN4E8 Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2418272Part Number #1447SN4E8UNSPSC39121324UPC00062398041028

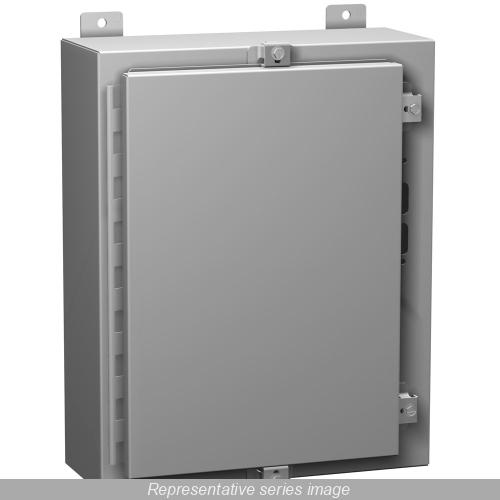

Image provided may only be a representation of final product and may include optional equipment
