Part Number # 2UD605012FTC
SKU # 2397107
Image Disclaimers Message
Brand: Hammond Manufacturing
2UD605012FTC

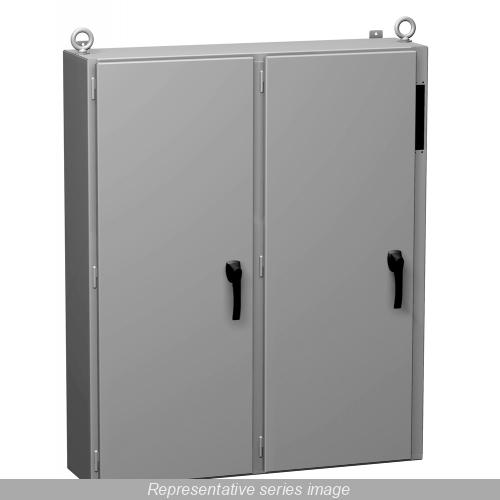

Hammond Manufacturing 2UD605012FTC Disconnect Enclosure
Part Number # 2UD605012FTC
SKU # 2397107
$4108.29 / Each
Typical price:$5228.72 / Each
Hammond Manufacturing 2UD605012FTC Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 2UD605012FTC |
| SKU #: | 2397107 |
| Capacity: | 36468.84 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 12/13/IP54 |
| Panel Size: | 56 in L x 44 in W |
| Series: | 2UD |
| Type: | Two Door |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 12.13 in |
| Height: | 60.13 in |
| Material: | 10 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 50 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398046171 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4108.29 / Each
Typical price:$5228.72 / Each
Quantity:
- Hammond Disconnect Enclosure, Two Door, Series: 2UD, 50 in Width, 12.13 in Depth, 60.13 in Height, NEMA 12/13/IP54, Hinged Cover, 56 in L x 44 in W Panel, 36468.84 cu-in, Wall Mount, 10 ga Mild Steel, Powder Coated, Gray
2UD605012FTC Application
ABB Controls Disconnect Switches and Circuit Breakers, Allen Bradley 1494F/1494V Disconnect Switches and 1494D Circuit Breaker Operators, C-H Westinghouse type C361 Disconnect Switches and type C371 Circuit Breakers, General Electric Type STDA Disconnect Switches and SpectraFlex Circuit Breakers, Siemens I-T-E Max-Flex Disconnect Switches and Circuit Breakers, Square D class 9422 Disconnect Switches and Circuit Breakers2UD605012FTC Item Features
- Smooth, continuously welded seams ground smooth
- Heavy duty lifting eyes are anchored into reinforced top corners
- Flange trough collar (FTC) around door opening excludes liquids and contaminants
- Removable doors are secured with heavy duty lift off hinges
- Center post is removable, providing easy panel installation
- Heavy duty three-point latching mechanism with heavy duty roller ends is provided for ease of door closing
- oil-resistant gaskets are permanently secured and mechanically retained
- The right hand door is the master door
- Master door handle complete with screw defeater and padlock hasp
- Slave door handle complete with padlock hasp
- A mechanical interlock activated by the master door prevents the auxiliary door from being opened first
- The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit
- A provision for mounting fluorescent lighting is provided
- Panel supports are provided
- A bonding screw is provided on the lid and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
2UD605012FTC Standards
CSA Certified|CE Certified|JIC EGP-1-1967|EMP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2397107Part Number #2UD605012FTCUNSPSC39121324UPC00062398046171
