Part Number # 2UHD727924N4SS
SKU # 2423390
Image Disclaimers Message
Brand: Hammond Manufacturing
2UHD727924N4SS

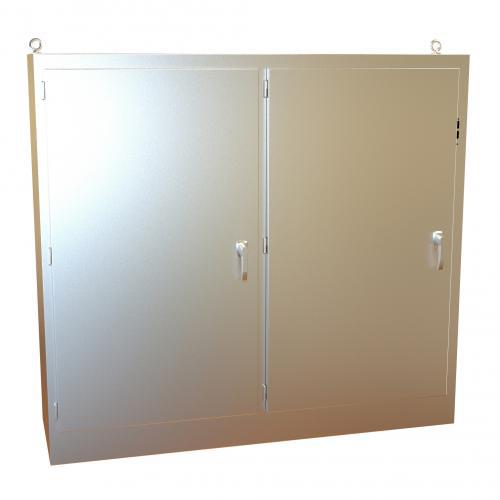

Hammond Manufacturing 2UHD727924N4SS Disconnect Enclosure
Part Number # 2UHD727924N4SS
SKU # 2423390
$18734.57 / Each
Typical price:$35184.44 / Each
Hammond Manufacturing 2UHD727924N4SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 2UHD727924N4SS |
| SKU #: | 2423390 |
| Finish: | Brushed |
| NEMA Rating: | NEMA 3R/12/13/4/4X/IP66 |
| Panel Size: | 60 in L x 72 in W |
| Series: | UHD SS |
| Type: | 2-Door Free-Standing |
| Country of origin: | CA |
| Depth: | 24 in |
| Height: | 72.13 in |
| Material: | 304 Stainless Steel |
| Width: | 79 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121301 |
| UPC: | 00062398014798 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18734.57 / Each
Typical price:$35184.44 / Each
Quantity:
- Hammond Disconnect Enclosure, 2-Door Free-Standing, Series: UHD SS, 79 in Width, 24 in Depth, 72.13 in Height, NEMA 3R/12/13/4/4X/IP66, Hinged Cover, 60 in L x 72 in W Panel, 304 Stainless Steel, Brushed
2UHD727924N4SS Application
ABB Controls Disconnect Switches and Circuit Breakers, Allen Bradley 1494V/1494F Disconnect Switches and 1494U/1494D Circuit Breakers, C-H Westinghouse Type C361 Disconnect Switches and Type C371, Flex-Shaft Circuit Breakers, General Electric type STDA Disconnect Switches and Circuit Breakers, Siemens I-T-E Max-Flex Disconnect Switches and Circuit Breakers, Square D Disconnect Switches and Circuit Breakers2UHD727924N4SS Item Features
- Smooth, continuously welded seams ground smooth
- Body stiffeners are provided in the larger enclosures for extra rigidity
- Flange trough collar (FTC) around door opening excludes liquids and contaminants
- Heavy duty lifting eyes are anchored into reinforced top corners
- Removable doors are secured with heavy duty lift off hinges
- Panel supports are provided
- Center post is removable, providing easy panel installation
- Heavy duty three-point latching mechanism with heavy duty roller ends is provided for ease of door closing
- oil-resistant gaskets are permanently secured
- The right hand door on all enclosures is the master door
- Master door handle complete with screw defeater and padlock hasp
- Slave door handle complete with padlock hasp
- A mechanical interlock activated by the master door prevents the auxiliary door from being opened first
- The flange cutout provides mounting for disconnect operators
- A provision for mounting fluorescent lighting is provided
- A bonding screw is provided on the lid and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
2UHD727924N4SS Standards
CSA Certified|CE Certified|JIC EGP-1-1967|EMP-1-1967|IEC 60529|RoHS Compliant|UL 508ASKU #2423390Part Number #2UHD727924N4SSUNSPSC39121301UPC00062398014798
