Part Number # C3R12126ESCNKAL
SKU # 2464532
C3R12126ESCNKAL
Hammond Manufacturing C3R12126ESCNKAL
Part Number # C3R12126ESCNKAL
SKU # 2464532
$156.48 / Each
Typical price:$270.77 / Each
Hammond Manufacturing C3R12126ESCNKAL Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | C3R12126ESCNKAL |
| SKU #: | 2464532 |
| NEMA Rating: | NEMA 3R/IP24 |
| Series: | C3RESCNKAL |
| UNSPSC: | 39121324 |
| UPC: | 00062398013366 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$156.48 / Each
Typical price:$270.77 / Each
Quantity:
- Hammond Junction Box, Series: C3RESCNKAL, 12 in Height, 12 in Width, 6 in Depth, NEMA 3R/IP24 NEMA Rating, Screw Cover, 864 cu-in Capacity, Wall Mounting, Aluminum, Natural/Unpainted
C3R12126ESCNKAL Application
Used to provide protection against rain, sleet, snow and dripping waterC3R12126ESCNKAL Item Features
- Formed from 0.08 in Type 5052 H-32 aluminum
- Drip-shield top and seam-free sides, front and back
- Slip-on removable cover fastened with plated steel screws
- External mounting feet
- Oil resistant gaskets are permanently secured
- A bonding stud is provided on the door and a grounding stud is provided in the box
C3R12126ESCNKAL Standards
CSA Certified|IEC 60529|UL 50|RoHS CompliantSKU #2464532Part Number #C3R12126ESCNKALUNSPSC39121324UPC00062398013366

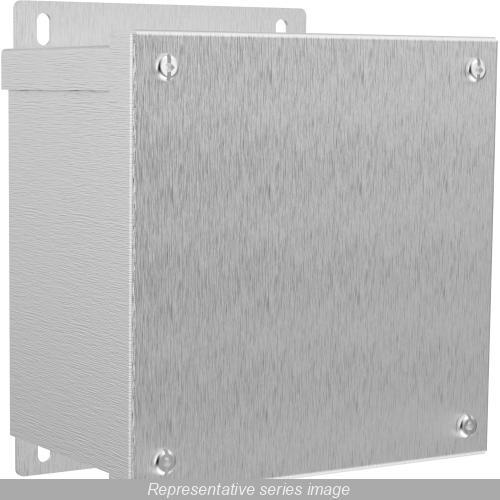

Image provided may only be a representation of final product and may include optional equipment
