Part Number # C3R864HCR
SKU # 2450203
Image Disclaimers Message
Brand: Hammond Manufacturing
C3R864HCR
Hammond Manufacturing C3R864HCR
Part Number # C3R864HCR
SKU # 2450203
$52.35 / Each
Typical price:$64.50 / Each
Hammond Manufacturing C3R864HCR Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | C3R864HCR |
| SKU #: | 2450203 |
| Cable Entry Size: | Knockout |
| Capacity: | 192 cu-in |
| Finish: | Painted/Powder Coated |
| NEMA Rating: | NEMA 3R/IP24 |
| Panel Size: | 6-1/4 in H x 4-1/4 in W |
| Series: | C3R HCR SM |
| Color: | ANSI 61 Gray |
| Country of origin: | CA |
| Depth: | 4 in |
| Height: | 8 in |
| Material: | 16 ga Galvanized Steel |
| Mounting type: | Wall |
| Width: | 6 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398036184 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$52.35 / Each
Typical price:$64.50 / Each
Quantity:
Hammond Manufacturing C3R864HCR
Brand: Hammond Manufacturing
Part Number: C3R864HCR

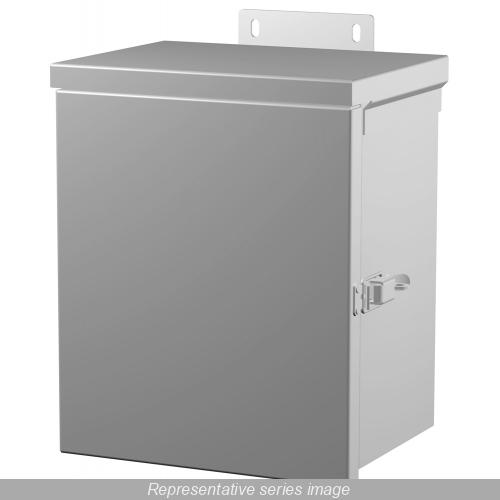

Hammond® Junction Box, Series: C3R HCR SM, 8 in Height, 6 in Width, 4 in Depth, NEMA 3R/IP24 NEMA Rating, Hinged Cover, 6-1/4 in H x 4-1/4 in W Panel, Lock: Padlock, Knockout Cable Entry, 192 cu-in Capacity, Wall Mounting, 16 ga Galvanized Steel, Painted/Powder Coated, ANSI 61 Gray
Additional Description: HAMM-C3R864HCR 3R HINGE COV 8X6X4
Catalog Description: Type 3R Hinge Cover - 8 x 6 x 4 - Galv/Gray
C3R864HCR Application
Used to provide protection against rain, sleet, snow and dripping waterC3R864HCR Item Features
- Drip shield top and seam-free sides, front and back
- Galvanized steel hinge has stainless steel pin
- Provisions for padlocking on zinc plated draw pull catch
- Easily removed knockouts on bottom of enclosure
- Panel studs provided for mounting optional panels
- External mounting feet
- Oil resistant gaskets are permanently secured
C3R864HCR Standards
CSA Certified|IEC 60529|UL 50|RoHS CompliantSKU #2450203Part Number #C3R864HCRUNSPSC39121324UPC00062398036184
