Part Number # CMC484812
SKU # 2411843
Image Disclaimers Message
Brand: Hammond Manufacturing
CMC484812
Hammond Manufacturing CMC484812 Metering Cabinet
Part Number # CMC484812
SKU # 2411843
$915.95 / Each
Typical price:$1584.91 / Each
Hammond Manufacturing CMC484812 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | CMC484812 |
| SKU #: | 2411843 |
| Capacity: | 27648 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 1 |
| Series: | CMC |
| Country of origin: | CA |
| Depth: | 48 in |
| Length: | 48 in |
| Material: | Mild Steel |
| Mounting type: | Wall |
| Width: | 12 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398026169 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$915.95 / Each
Typical price:$1584.91 / Each
Quantity:

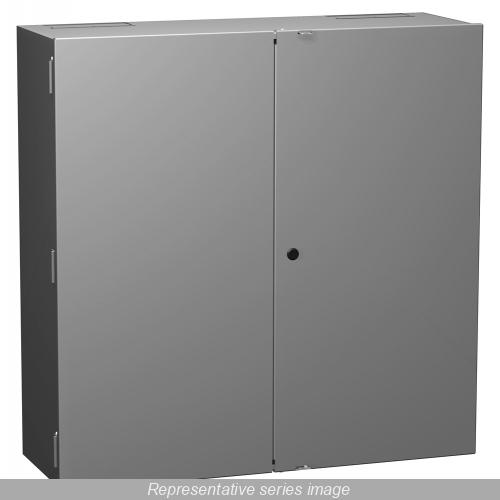

- Hammond Metering Cabinet, Series: CMC, 48 in Length, 12 in Width, 48 in Depth, NEMA 1 NEMA Rating, 2 Doors, Lock: 2 Hasp + Quarter-Turn Latch, 27648 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
CMC484812 Application
For indoor housing of metering transformersCMC484812 Item Features
- Formed and spot welded from 14 or 16 ga steel
- Formed edges
- Removable inner panel, hinged cover
- Hinged covers
- Two cutouts in top of each cabinet with metering plates included
- Enclosure and cover are finished in ANSI 61 gray inside and out
- Inner panel is finished in white powder coating
- 44 x 44 in panel
- 3-latches
- Two plates
- Made of 14 or 16 ga steel
- ANSI 61 gray color
CMC484812 Standards
CSA Type 1|IEC 60529|IP10 Rated|RoHS CompliantSKU #2411843Part Number #CMC484812UNSPSC39121324UPC00062398026169
