Part Number # DTS3031A115N4SS
SKU # 2449607
Image Disclaimers Message
Brand: Hammond Manufacturing
DTS3031A115N4SS
Hammond Manufacturing DTS3031A115N4SS
Part Number # DTS3031A115N4SS
SKU # 2449607
$3153.91 / Each
Typical price:$3885.61 / Each
Hammond Manufacturing DTS3031A115N4SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | DTS3031A115N4SS |
| SKU #: | 2449607 |
| Amperage Rating: | 3 A Running/10 A Starting |
| Control Type: | Thermostat |
| Dimensions: | 15-1/2 in H x 7 in W x 7-3/4 in D |
| Enclosure Type: | NEMA 3R/4/4X/IP56 |
| Frequency Rating: | 60 Hz |
| Series: | DTS |
| Temperature Rating (Degrees F): | -40 to 114 deg F |
| Country of origin: | US |
| Material: | 304 Stainless Steel |
| Mounting type: | Side |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 0 |
| UPC: | 00062398043390 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3153.91 / Each
Typical price:$3885.61 / Each
Quantity:

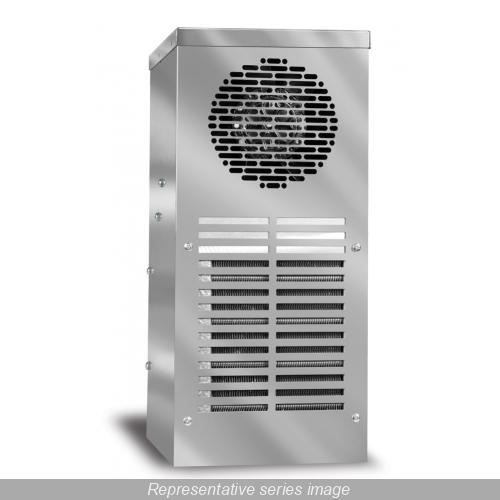

- Hammond Air Conditioner, Series: DTS, 115 V AC, 3 A Running/10 A Starting, 325 W, 60 Hz, 900 to 1300 BTU/hr Capacity, NEMA 3R/4/4X/IP56, Thermostat Control, -40 to 114 deg F, Side Mount, 304 Stainless Steel, 15-1/2 in H x 7 in W x 7-3/4 in D
DTS3031A115N4SS Application
Outdoor ApplicationsDTS3031A115N4SS Includes
Gasket, Mounting Kit, Template For Enclosure Cutout and DrillingDTS3031A115N4SS Item Features
- R134a refrigerant
- Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units
- Direct condensate discharge via 1/4 in NPT threaded port
- Continuous air circulation from high capacity fans
- Provision for door contact allowing power down when enclosure door is opened
- Washable aluminum mesh filter
- Compact design for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required
- Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air
DTS3031A115N4SS Standards
cULus Listed|UL Listed|CE Certified|RoHS CompliantDTS3031A115N4SS Warranty
1 YearSKU #2449607Part Number #DTS3031A115N4SSUNSPSC0UPC00062398043390
