Part Number # DTS3245A460LG
SKU # 2453822
DTS3245A460LG
Hammond Manufacturing DTS3245A460LG
Part Number # DTS3245A460LG
SKU # 2453822
$5086.87 / Each
Typical price:$6267.03 / Each
Hammond Manufacturing DTS3245A460LG Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | DTS3245A460LG |
| SKU #: | 2453822 |
| Control Type: | Thermostat |
| Dimensions: | 53 in H x 16 in W x 11.9 in D |
| Enclosure Type: | NEMA 12 |
| Series: | DTS |
| Type: | Indoor |
| Country of origin: | US |
| Mounting type: | Side |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 40101701 |
| UPC: | 00062398072008 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5086.87 / Each
Typical price:$6267.03 / Each
Quantity:
Hammond Manufacturing DTS3245A460LG
Brand: Hammond Manufacturing
Part Number: DTS3245A460LG
Hammond®, Indoor, Series: DTS, 460 VAC, 9000 to 12000 Btu/hr Capacity Range, NEMA 12, Thermostat Control, Side Mount, 53 in H x 16 in W x 11.9 in D
Additional Description: HAMM-DTS3245A460LG AC UNIT 9-12,000BTU/H 460V
Catalog Description: Air Conditioner 9-12,000 BTU 460V
DTS3245A460LG Item Features
- Designed for side mounting on any enclosure surface where high capacity system cooling is required
- Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air
- Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations
- R134a refrigerant
- Thermostat control accessible from inside enclosure
- Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units
- Continuous air circulation from high capacity fans
- EMI/RFI suppression meets CE
- Built-in condensate evaporator
- Self-diagnostics on startup
- Fault indication via LED light
- Provision for door contact allowing power down when enclosure door is opened
- Gasket, mounting kit and template for enclosure cutout and drilling are included
- Condensate drain hose and clamp provided
- Q mount allows unit to hang in place for easy installation
- 3 Phase
DTS3245A460LG Standards
CE Certified|cULus Listed|RoHS CompliantSKU #2453822Part Number #DTS3245A460LGUNSPSC40101701UPC00062398072008

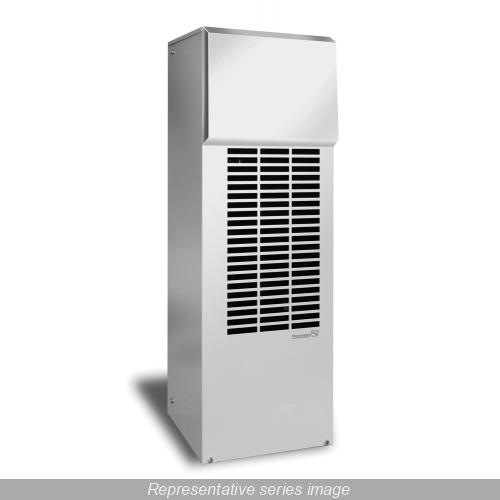

Image provided may only be a representation of final product and may include optional equipment
