DTT6101B230LG

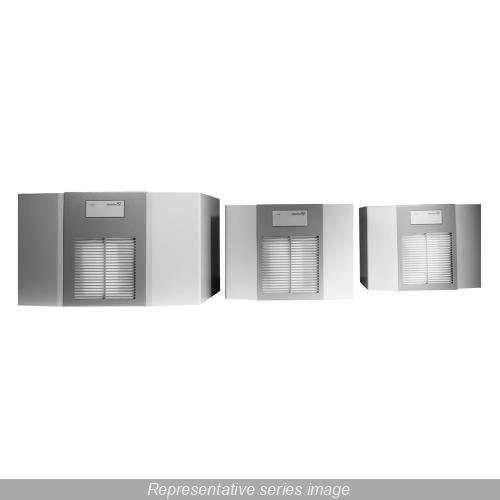

Hammond Manufacturing DTT6101B230LG Air Conditioner
Part Number # DTT6101B230LG
SKU # 2420436
$3265.75 / Each
Typical price:$4023.41 / Each
Hammond Manufacturing DTT6101B230LG Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | DTT6101B230LG |
| SKU #: | 2420436 |
| Amperage Rating: | 2.1/2.3 to 19.7/23 A |
| Control Type: | Thermostat |
| Dimensions: | 17.13 in H x 23.41 in W x 15.55 in D |
| Enclosure Type: | NEMA 12/IP54 |
| Frequency Rating: | 50/60 Hz |
| Series: | DTT Series |
| Temperature Rating (Degrees F): | 59 to 131 deg F Ambient |
| Color: | Light gray |
| Connection type: | Drain Hose/Clamp |
| Country of origin: | DE |
| Material: | Galvanized Sheet Steel |
| Mounting type: | Top |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121301 |
| UPC: | 00062398033622 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3265.75 / Each
Typical price:$4023.41 / Each
Quantity:
- Hammond Air Conditioner, Series: DTT Series, 230 V AC, 2.1/2.3 to 19.7/23 A, 450/540 W, 50/60 Hz, 2300 Btu/hr Capacity, NEMA 12/IP54, Thermostat Control, Drain Hose/Clamp, 59 to 131 deg F Ambient, Top Mount, Galvanized Sheet Steel, Light Gray, 17.13 in H x 23.41 in W x 15.55 in D
DTT6101B230LG Application
Indoor ApplicationsDTT6101B230LG Includes
Gasket, Mounting Kit and TemplateDTT6101B230LG Item Features
- R134a refrigerant
- Thermostat control accessible from inside enclosure
- Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large Btu/hr units
- Built in condensate evaporator
- Continuous air circulation from high capacity fans
- EMI/RFI suppression meets CE
- Self-diagnostics on startup
- Fault indication via LED light
- Provision for door contact allowing power down when enclosure door is opened
- Gasket, mounting kit and template for enclosure cutout and drilling are included
- Mounting via toolless sash fasteners
- High reliability and long maintenance intervals
- Excellent security level due to patented condensate management system which prevents condensate from penetrating the enclosure
- Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air
- Designed for top mounting where space limitations do not allow side mounting on the enclosure surface
DTT6101B230LG Standards
RoHS Compliant|UL Recognized|cUL Recognized|CE Certified|cULus Recognized|eccn: EAR99DTT6101B230LG Warranty
1 yearSKU #2420436Part Number #DTT6101B230LGUNSPSC39121301UPC00062398033622
