Part Number # EJ161410S16
SKU # 2298035
EJ161410S16

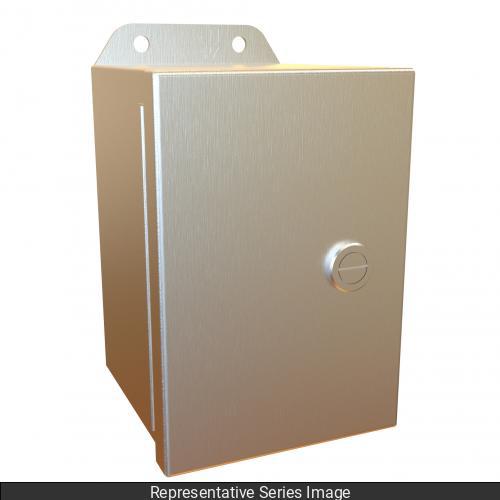

Hammond Manufacturing EJ161410S16 Junction Box
Part Number # EJ161410S16
SKU # 2298035
Hammond Manufacturing EJ161410S16 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EJ161410S16 |
| SKU #: | 2298035 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4/4X/12/13/IP66 |
| Panel Size: | 14.75 in H x 12.88 in W |
| Series: | Eclipse Junior |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980050157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Manufacturing EJ161410S16 Junction Box
Brand: Hammond Manufacturing
Part Number: EJ161410S16
Hammond Junction Box, Series: Eclipse Junior, 16 in Height, 14 in Width, 10 in Depth, NEMA 3R/4/4X/12/13/IP66 NEMA Rating, Hinged Cover, 14.75 in H x 12.88 in W Panel, Lock: Quarter-Turn Latch, 2240 cu-in Capacity, Wall Mounting, 316 Stainless Steel, Smooth Brushed, Natural/Unpainted
Additional Description: HAMM-EJ161410S16 ECLIPSE JR. 316SS - 1 DR. WALL 16 X 14 X 10 - 316 SS
Catalog Description: N4X Eclipse Junior encl w/ panel - 16 x 14 x 10 - 316 SS
EJ161410S16 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings, Electrical Junction Boxes/Terminal Wiring EnclosuresEJ161410S16 Includes
Mounting HardwareEJ161410S16 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Formed lip on enclosure excludes flowing liquids and contaminants
- 14 ga welded brackets provide for enclosure mounting
- Continuously hinged cover has stainless steel hinges and provides 180 deg opening
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening
- Quarter turn latches formed from 316 stainless steel
- Seamless poured-in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- For high temperature applications, a gasket retainer may be required
- https://vimeo.com/120162073
EJ161410S16 Standards
CSA Certified|CE Marked|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantEJ161410S16 Warranty
1 YearSKU #2298035Part Number #EJ161410S16UNSPSC39121324UPC00623980050157
Image provided may only be a representation of final product and may include optional equipment
