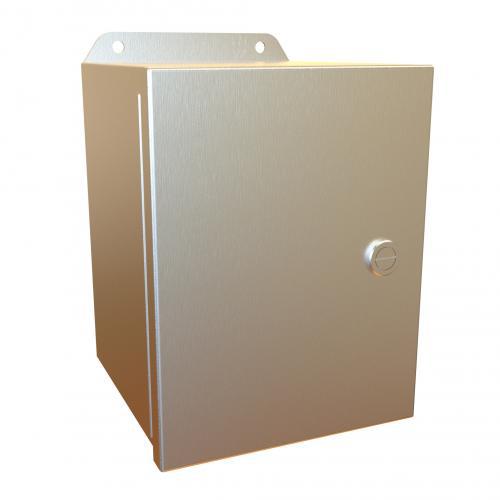

Hammond Manufacturing EJ866SS Junction Box
Part Number # EJ866SS
SKU # 2379422
$332.08 / Each
Typical price:$623.65 / Each
Hammond Manufacturing EJ866SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EJ866SS |
| SKU #: | 2379422 |
| Capacity: | 288 cu-in |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4X/13 |
| Panel Size: | 4.88 in W x 6.75 in H |
| Series: | Eclipse Junior, Eclipse™ Junior |
| Type: | 1-Door |
| Country of origin: | CA |
| Depth: | 6 in |
| Height: | 8 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 6 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980173429 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$332.08 / Each
Typical price:$623.65 / Each
Quantity:
- Hammond Junction Box, 1-Door, Series: Eclipse Junior, 8 in Height, 6 in Width, 6 in Depth, NEMA 3R/4X/13 NEMA Rating, Continuous Hinged Cover, 4.88 in W x 6.75 in H Panel, Lock: Quarter-Turn Latch, 288 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
EJ866SS Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosuresEJ866SS Includes
Grounding and Panel Mounting HardwareEJ866SS Item Features
- Body and cover are formed from 16 ga 304 stainless steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Formed lip on enclosure to exclude flowing liquids and contaminants
- 14 ga welded brackets provide for enclosure mounting
- Continuously hinged cover has stainless steel hinges and provides 180 deg opening
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Quarter-turn latches formed from 316 stainless steel
- Seamless poured-in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- For high temperature applications, a gasket retainer may be required, please refer to factory
- https://vimeo.com/120162073
EJ866SS Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2379422Part Number #EJ866SSUNSPSC39121324UPC00623980173429
