Part Number # EJ884AL
SKU # 2450325
Image Disclaimers Message
EJ884AL
Hammond Manufacturing EJ884AL
Part Number # EJ884AL
SKU # 2450325
$232.60 / Each
Typical price:$436.84 / Each
Hammond Manufacturing EJ884AL Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EJ884AL |
| SKU #: | 2450325 |
| Capacity: | 256 cu-in |
| NEMA Rating: | NEMA 3R/4/4X/12/13/IP66 |
| Panel Size: | 6.75 in H x 6.88 in W |
| Series: | Eclipse Junior |
| Color: | Natural/Unpainted |
| Country of origin: | CA |
| Depth: | 4 in |
| Height: | 8 in |
| Material: | Aluminum |
| Mounting type: | Wall |
| Width: | 8 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398005919 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$232.60 / Each
Typical price:$436.84 / Each
Quantity:

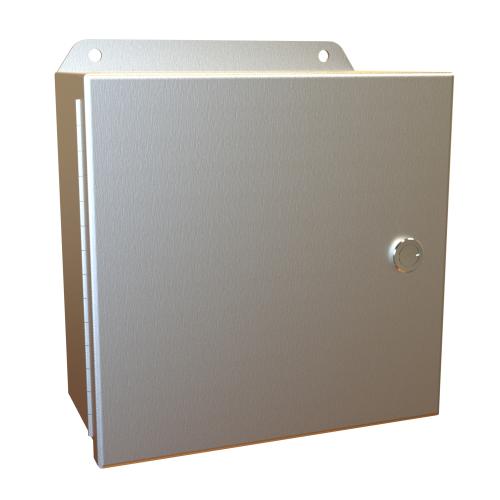

- Hammond Junction Box, Series: Eclipse Junior, 8 in Height, 8 in Width, 4 in Depth, NEMA 3R/4/4X/12/13/IP66 NEMA Rating, Hinged Cover, 6.75 in H x 6.88 in W Panel, Lock: Quarter-Turn Latch, 256 cu-in Capacity, Wall Mounting, Aluminum, Natural/Unpainted
EJ884AL Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings, Electrical Junction Boxes/Terminal Wiring EnclosuresEJ884AL Includes
Mounting HardwareEJ884AL Item Features
- Formed from 0.08 in Type 5052 H-32 aluminum
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Formed lip on enclosure excludes flowing liquids and contaminants
- Welded brackets provide for enclosure mounting
- Continuously hinged cover has aluminum hinge and provides 180 deg opening
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening
- Quarter turn latches formed from 316 stainless steel
- Seamless poured-in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- https://vimeo.com/120162073
EJ884AL Standards
CSA Certified|CE Marked|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantEJ884AL Warranty
1 YearSKU #2450325Part Number #EJ884ALUNSPSC39121324UPC00062398005919
