Part Number # EJ884SS
SKU # 2408641
EJ884SS

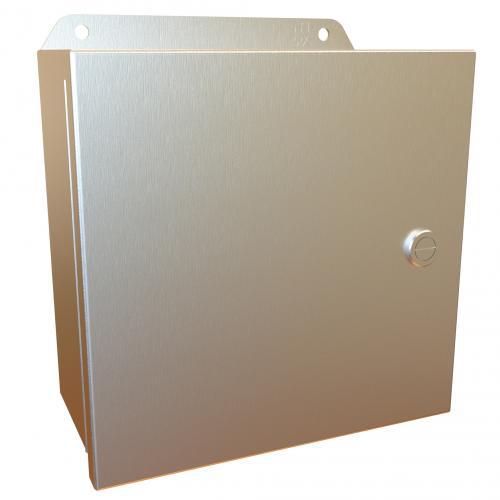

Hammond Manufacturing EJ884SS Junction Box
Part Number # EJ884SS
SKU # 2408641
$317.29 / Each
Typical price:$595.89 / Each
Hammond Manufacturing EJ884SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EJ884SS |
| SKU #: | 2408641 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4X/13 |
| Panel Size: | 6.88 in W x 6.75 in H |
| Series: | Eclipse Junior, Eclipse™ Junior |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398017340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$317.29 / Each
Typical price:$595.89 / Each
Quantity:
Hammond Manufacturing EJ884SS Junction Box
Brand: Hammond Manufacturing
Part Number: EJ884SS
Hammond Junction Box, 1-Door, Series: Eclipse Junior, 8 in Height, 8 in Width, 4 in Depth, NEMA 3R/4X/13 NEMA Rating, Continuous Hinged Cover, 6.88 in W x 6.75 in H Panel, Lock: Quarter-Turn Latch, 256 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
Additional Description: HAMM-EJ884SS ECLIPSE JR. SS - 1 DR. WALLMNT
Catalog Description: N4X Eclipse Junior encl w/ panel - 8 x 8 x 4 - 304 SS
EJ884SS Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosuresEJ884SS Includes
Grounding and Panel Mounting HardwareEJ884SS Item Features
- Body and cover are formed from 16 ga 304 stainless steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Formed lip on enclosure to exclude flowing liquids and contaminants
- 14 ga welded brackets provide for enclosure mounting
- Continuously hinged cover has stainless steel hinges and provides 180 deg opening
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Quarter-turn latches formed from 316 stainless steel
- Seamless poured-in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- For high temperature applications, a gasket retainer may be required, please refer to factory
- https://vimeo.com/120162073
EJ884SS Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2408641Part Number #EJ884SSUNSPSC39121324UPC00062398017340
Image provided may only be a representation of final product and may include optional equipment
