Part Number # EN4SD201610WSS
SKU # 2445993
EN4SD201610WSS
Hammond Manufacturing EN4SD201610WSS
Part Number # EN4SD201610WSS
SKU # 2445993
$1415.97 / Each
Typical price:$2659.28 / Each
Hammond Manufacturing EN4SD201610WSS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EN4SD201610WSS |
| SKU #: | 2445993 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4X/13 |
| Series: | Eclipse |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398004242 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1415.97 / Each
Typical price:$2659.28 / Each
Quantity:
Hammond Manufacturing EN4SD201610WSS
Brand: Hammond Manufacturing
Part Number: EN4SD201610WSS

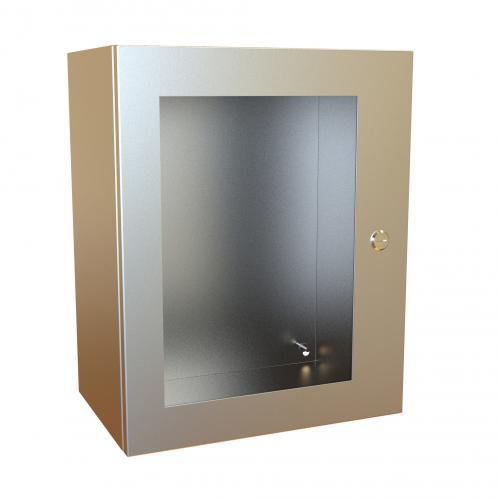

Hammond® Enclosure, 1-Door, Series: Eclipse™, 16 in Width, 10 in Depth, 20 in Height, NEMA 3R/4X/13 NEMA Rating, Hinged Cover, 14.2 in W x 18.2 in H Panel, Lock: Quarter-Turn Latch, 3200 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
Additional Description: HAMM-EN4SD201610WSS ECLIPSE SS PLEXI DR WALLMT
Catalog Description: N4X Eclipse Window Door encl. - 20 x 16 x 10 - 304 SS
EN4SD201610WSS Application
For enclosing electrical and/or electronic equipment in wall mount applications where viewing of component operation is necessary while maintaining protection ratingsEN4SD201610WSS Includes
Hardware Kit with Panel Mounting Nuts and Sealing WashersEN4SD201610WSS Item Features
- Formed 14 or 16 ga 304 stainless steel
- Full view UV-resistant polycarbonate window allows maximum viewing area of inner panel
- Continuously welded seams ground smooth
- Formed lip on enclosure exclude flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs provided for mounting inner panel
- A bonding stud is provided on door and a grounding stud is installed in the enclosure
- Hinges are constructed from stainless steel
- Stainless steel hinge pins and quarter-turns
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
- https://vimeo.com/120162072
EN4SD201610WSS Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508AEN4SD201610WSS Warranty
1 YearSKU #2445993Part Number #EN4SD201610WSSUNSPSC39121324UPC00062398004242
Image provided may only be a representation of final product and may include optional equipment
