Part Number # EN4SD20208WGY
SKU # 2447827
Image Disclaimers Message
EN4SD20208WGY
Hammond Manufacturing EN4SD20208WGY
Part Number # EN4SD20208WGY
SKU # 2447827
$527.10 / Each
Typical price:$795.82 / Each
Hammond Manufacturing EN4SD20208WGY Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EN4SD20208WGY |
| SKU #: | 2447827 |
| Capacity: | 3200 cu-in |
| Finish: | Smooth |
| NEMA Rating: | NEMA 3R/4/12 |
| Panel Size: | 18.2 in L x 18.2 in W |
| Series: | Eclipse |
| Type: | Single Door |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 8 in |
| Height: | 20 in |
| Material: | 16 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 20 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398044567 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$527.10 / Each
Typical price:$795.82 / Each
Quantity:
Hammond Manufacturing EN4SD20208WGY
Brand: Hammond Manufacturing
Part Number: EN4SD20208WGY

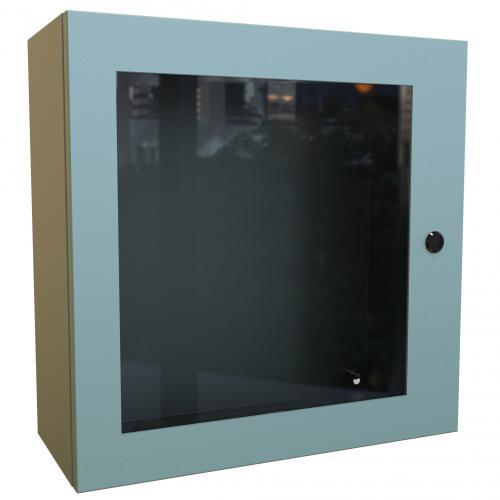

Hammond® Enclosure, Single Door, Series: Eclipse™, 20 in Width, 8 in Depth, 20 in Height, NEMA 3R/4/12 NEMA Rating, Hinged Cover, 18.2 in L x 18.2 in W Panel, Lock: Quarter-Turn Latch, 3200 cu-in Capacity, Wall Mounting, 16 ga Mild Steel, Smooth, Gray
Additional Description: HAMM-EN4SD20208WGY ECLIPSE N4 1 DR. C/W WINDOW
Catalog Description: N4,12 Eclipse Window Door encl. - 20 x 20 x 8 - Steel/Gray
EN4SD20208WGY Application
For used to enclose electrical and electronic equipment in wall mount applicationsEN4SD20208WGY Includes
Hardware Kit with Panel Mounting Nuts and Sealing WashersEN4SD20208WGY Item Features
- Full view UV-resistant polycarbonate window allows maximum viewing area of inner panel
- Smooth, continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- Bonding stud provided on door and grounding stud installed in enclosure
- Hinges are constructed from 304 stainless steel
- Hinge pins are stainless steel
- quarter-turn latches are zinc die-cast with black epoxy finish
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
- https://vimeo.com/120162072
EN4SD20208WGY Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508AEN4SD20208WGY Warranty
1 YearSKU #2447827Part Number #EN4SD20208WGYUNSPSC39121324UPC00062398044567
