Part Number # EN4SD20208WSS
SKU # 2448078
Image Disclaimers Message
EN4SD20208WSS
Hammond Manufacturing EN4SD20208WSS
Part Number # EN4SD20208WSS
SKU # 2448078
$1436.21 / Each
Typical price:$2697.28 / Each
Hammond Manufacturing EN4SD20208WSS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EN4SD20208WSS |
| SKU #: | 2448078 |
| Capacity: | 3200 cu-in |
| Finish: | Smooth Brushed/Unpainted |
| NEMA Rating: | NEMA 3R/4X/12/13 |
| Panel Size: | 18.2 in L x 18.2 in W |
| Series: | Eclipse |
| Country of origin: | CA |
| Depth: | 8 in |
| Height: | 20 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 20 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398036319 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1436.21 / Each
Typical price:$2697.28 / Each
Quantity:

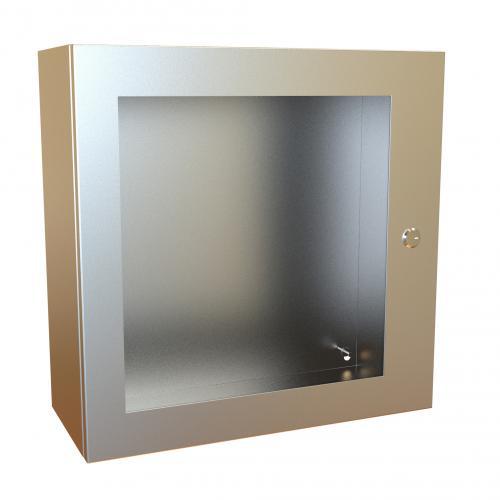

- Hammond Enclosure, Series: Eclipse, 20 in Width, 8 in Depth, 20 in Height, NEMA 3R/4X/12/13 NEMA Rating, Hinged Cover, 18.2 in L x 18.2 in W Panel, Lock: Quarter-Turn Latch, 3200 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed/Unpainted
EN4SD20208WSS Application
For used to enclose electrical and electronic equipment in wall mount applicationsEN4SD20208WSS Includes
Hardware Kit with Panel Mounting Nuts and Sealing WashersEN4SD20208WSS Item Features
- Full view UV-resistant polycarbonate window allows maximum viewing area of inner panel
- Continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- Bonding stud provided on door and grounding stud installed in enclosure
- Hinges are constructed from stainless steel
- Stainless steel hinge pins and quarter-turns
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
- https://vimeo.com/120162072
EN4SD20208WSS Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508AEN4SD20208WSS Warranty
1 YearSKU #2448078Part Number #EN4SD20208WSSUNSPSC39121324UPC00062398036319
