EN4SD24206WGY

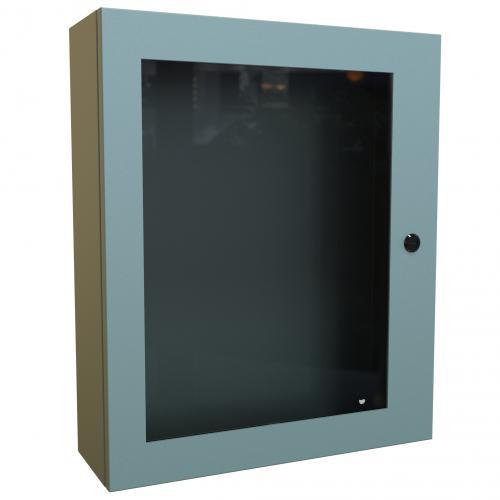

Hammond Manufacturing EN4SD24206WGY Enclosure
Part Number # EN4SD24206WGY
SKU # 2357960
$535.49 / Each
Typical price:$808.49 / Each
Hammond Manufacturing EN4SD24206WGY Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EN4SD24206WGY |
| SKU #: | 2357960 |
| Capacity: | 2880, 2880 cu-in |
| Finish: | Powder Coated/Smooth |
| NEMA Rating: | NEMA 3R/4 |
| Panel Size: | 18.2 in W x 22.2 in H, 22.2 in H x 18.2 in W |
| Series: | Eclipse, Eclipse™ |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 6, 6 in |
| Height: | 24, 24 in |
| Length: | 24 |
| Material: | Mild Steel |
| Mounting type: | Wall |
| Width: | 20, 20 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980445618 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$535.49 / Each
Typical price:$808.49 / Each
Quantity:
Hammond Manufacturing EN4SD24206WGY Enclosure
Brand: Hammond Manufacturing
Part Number: EN4SD24206WGY
Hammond Enclosure, 1-Door, Series: Eclipse , 20 in Width, 6 in Depth, 24 in Height, NEMA 3R/4 NEMA Rating, Hinged Cover, 18.2 in W x 22.2 in H Panel, Lock: Quarter-Turn Latch, 2880 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated/Smooth, Gray
Additional Description: HAMM-EN4SD24206WGY ECLIPSE N4 1 DR. C/W WINDOW
Catalog Description: N4,12 Eclipse Window Door encl. - 24 x 20 x 6 - Steel/Gray
EN4SD24206WGY Application
For enclosing electrical and/or electronic equipment in wall mount applications where viewing of component operation is necessary while maintaining protection ratingsEN4SD24206WGY Includes
Hardware Kit with Panel Mounting Nuts and Sealing WashersEN4SD24206WGY Item Features
- Formed 14 or 16 ga steel
- Full view UV-resistant polycarbonate window allows maximum viewing area of inner panel
- Smooth, continuously welded seams ground smooth
- Formed lip on enclosure exclude flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs provided for mounting inner panel
- A bonding stud is provided on door and a grounding stud is installed in the enclosure
- Hinges are constructed from 304 stainless steel
- Hinges are constructed from stainless steel
- quarter-turn latches are zinc die cast with black epoxy finish
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
- https://vimeo.com/120162072
EN4SD24206WGY Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508AEN4SD24206WGY Warranty
1 YearSKU #2357960Part Number #EN4SD24206WGYUNSPSC39121324UPC00623980445618
