EN4SD303012S16

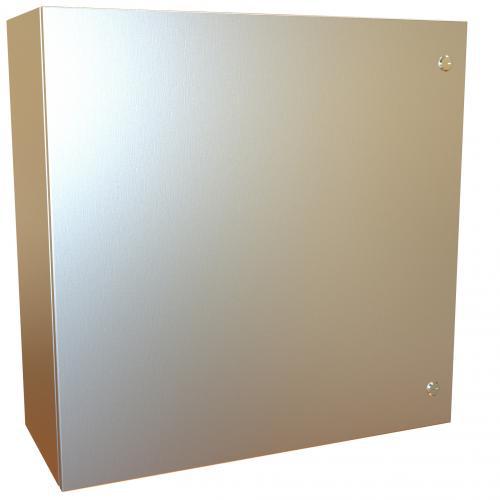

Hammond Manufacturing EN4SD303012S16 Wall Mount Enclosure
Part Number # EN4SD303012S16
SKU # 2413202
$2243.25 / Each
Typical price:$4212.92 / Each
Hammond Manufacturing EN4SD303012S16 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | EN4SD303012S16 |
| SKU #: | 2413202 |
| Capacity: | 10800 cu-in |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4/4X/12/13/IP66 |
| Panel Size: | 28.2 in W x 28.2 in H |
| Series: | Eclipse Series |
| Color: | Natural |
| Country of origin: | CA |
| Depth: | 12 in |
| Height: | 30 in |
| Material: | 316 Stainless Steel |
| Mounting type: | Wall |
| Width: | 30 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398049481 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2243.25 / Each
Typical price:$4212.92 / Each
Quantity:
- Hammond Wall Mount Enclosure, Series: Eclipse Series, 30 in Width, 12 in Depth, 30 in Height, NEMA 3R/4/4X/12/13/IP66 NEMA Rating, Hinged/Interchangeable/Removable Cover, 28.2 in W x 28.2 in H Panel, Lock: 3-Point Door Latching Handle, 10800 cu-in Capacity, Wall Mounting, 316 Stainless Steel, Smooth Brushed, Natural
EN4SD303012S16 Application
Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications. Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete packageEN4SD303012S16 Includes
Hardware KitEN4SD303012S16 Item Features
- Formed 14 or 16 ga 304 or 316 stainless steel
- Continuously welded seams ground smooth
- Door stiffeners are provided where required for increased strength and rigidity designed to also permit additional mounting options
- Formed lip on enclosure to exclude flowing liquids and contaminants
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured-in place gasket
- Collar studs provided for mounting inner panel
- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes
- Bonding stud provided on door and grounding stud installed in enclosure
- Stainless steel 3-point latching handle (where applicable)
- Stainless steel hinge pins and quarter turns
- Door alignment guide provided on 36 in W enclosures
- https://vimeo.com/120162072
EN4SD303012S16 Standards
CE Certified|CSA File No. LR21001|ECCN: EAR99|IEC 60529|REACH Compliant|RoHS Compliant|UL 508A File No. E65324EN4SD303012S16 Warranty
1 yearSKU #2413202Part Number #EN4SD303012S16UNSPSC39121324UPC00062398049481
