Part Number # HJ866HLP
SKU # 2448302
Image Disclaimers Message
HJ866HLP
Hammond Manufacturing HJ866HLP
Part Number # HJ866HLP
SKU # 2448302
$90.01 / Each
Typical price:$135.90 / Each
Hammond Manufacturing HJ866HLP Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HJ866HLP |
| SKU #: | 2448302 |
| Capacity: | 288 cu-in |
| Finish: | Phosphatized/Powder Coated |
| NEMA Rating: | NEMA 3R/4/12/13/IP66 |
| Panel Size: | 6.75 in H x 4.88 in W |
| Series: | HJ H |
| Type: | Less Panel |
| Color: | ANSI 61 Gray |
| Country of origin: | CA |
| Depth: | 6 in |
| Height: | 8 in |
| Material: | 14 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 6 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398087907 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.01 / Each
Typical price:$135.90 / Each
Quantity:

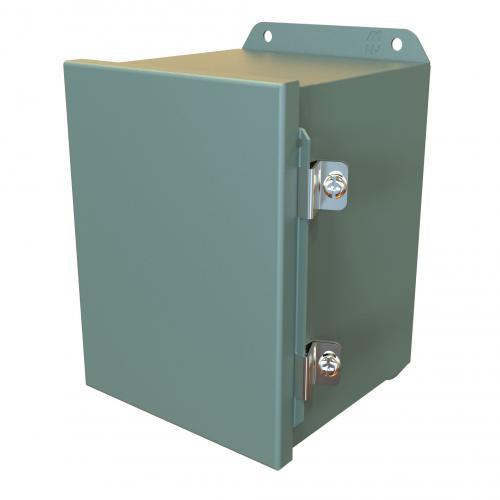

- Hammond Junction Box, Less Panel, Series: HJ H, 8 in Height, 6 in Width, 6 in Depth, NEMA 3R/4/12/13/IP66 NEMA Rating, Hinged Cover, 6.75 in H x 4.88 in W Panel, 288 cu-in Capacity, Wall Mounting, 14 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
HJ866HLP Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures ApplicationsHJ866HLP Item Features
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuous hinged cover is secured with stainless steel clamps and screws
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
HJ866HLP Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2448302Part Number #HJ866HLPUNSPSC39121324UPC00062398087907
