Part Number # HN4FM604818S16
SKU # 2397788
Image Disclaimers Message
HN4FM604818S16

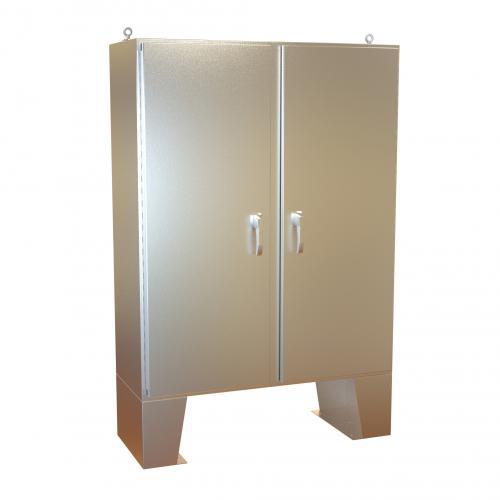

Hammond Manufacturing HN4FM604818S16 Enclosure
Part Number # HN4FM604818S16
SKU # 2397788
$10801.04 / Each
Typical price:$20284.89 / Each
Hammond Manufacturing HN4FM604818S16 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HN4FM604818S16 |
| SKU #: | 2397788 |
| Capacity: | 54011.25 cu-in |
| Finish: | Brushed |
| NEMA Rating: | NEMA 3R/4X/12/13/IP66 |
| Panel Size: | 56 in L x 44 in W |
| Series: | HN4 FM SS |
| Type: | 2-Door |
| Country of origin: | CA |
| Depth: | 18.69 in |
| Height: | 60.13 in |
| Material: | 316 Stainless Steel |
| Mounting type: | Floor |
| Width: | 48.06 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398063762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10801.04 / Each
Typical price:$20284.89 / Each
Quantity:
- Hammond Enclosure, 2-Door, Series: HN4 FM SS, 48.06 in Width, 18.69 in Depth, 60.13 in Height, NEMA 3R/4X/12/13/IP66 NEMA Rating, Hinged Cover, 56 in L x 44 in W Panel, Lock: 3-Point/Padlock, 54011.25 cu-in Capacity, Floor Mounting, 316 Stainless Steel, Brushed
HN4FM604818S16 Application
House Electrical, Electronic, Hydraulic, Pneumatic Controls and Instrument ApplicationsHN4FM604818S16 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles
- Doors are supported with heavy gauge continuous hinges
- Seamless poured in place gasket
- Center post is removable for easy installation of the inner panel
- 12 in floor stands are welded to the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door
HN4FM604818S16 Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508ASKU #2397788Part Number #HN4FM604818S16UNSPSC39121324UPC00062398063762
