Part Number # HN4FM726018S16
SKU # 2399529
Image Disclaimers Message
Brand: Hammond Manufacturing
HN4FM726018S16

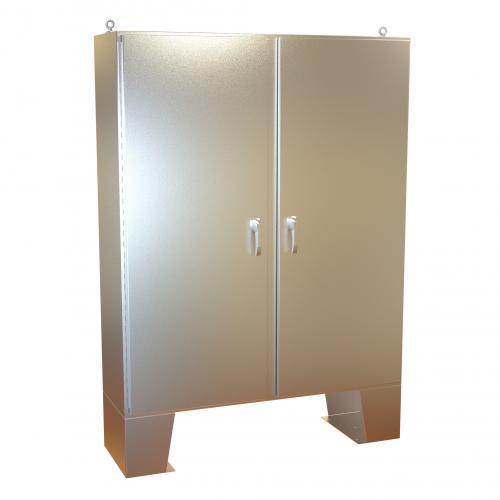

Hammond Manufacturing HN4FM726018S16 Enclosure
Part Number # HN4FM726018S16
SKU # 2399529
$13333.74 / Each
Typical price:$25041.41 / Each
Hammond Manufacturing HN4FM726018S16 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HN4FM726018S16 |
| SKU #: | 2399529 |
| Capacity: | 77760 cu-in |
| Finish: | Brushed |
| NEMA Rating: | NEMA 3R/4X/12/13/IP66 |
| Panel Size: | 56 in W x 68 in H |
| Series: | HN4 FM SS |
| Type: | 2-Door |
| Color: | Unpainted |
| Country of origin: | CA |
| Depth: | 18 in |
| Height: | 72 in |
| Material: | 316 Stainless Steel |
| Mounting type: | Floor |
| Width: | 60 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398014218 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13333.74 / Each
Typical price:$25041.41 / Each
Quantity:
- Hammond Enclosure, 2-Door, Series: HN4 FM SS, 60 in Width, 18 in Depth, 72 in Height, NEMA 3R/4X/12/13/IP66, Continuous Hinged Cover, 56 in W x 68 in H Panel, 77760 cu-in, Floor Mount, 316 Stainless Steel, Brushed, Unpainted
HN4FM726018S16 Application
For house electrical, electronic, hydraulic or pneumatic controls and instruments, provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problemHN4FM726018S16 Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles
- Doors are supported with heavy gauge continuous hinges
- New 3-pt padlocking door handle
- Seamless poured in place gasket
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door
- Center post is removable for easy installation of the inner panel
- 12 in floor stands are welded to the enclosure
HN4FM726018S16 Standards
CSA Certified|IEC 60529|CE Certified|ECCN: EAR99|RoHS Compliant|UL 508ASKU #2399529Part Number #HN4FM726018S16UNSPSC39121324UPC00062398014218
