Part Number # HN4FM727218SS
SKU # 2359120
Image Disclaimers Message
HN4FM727218SS

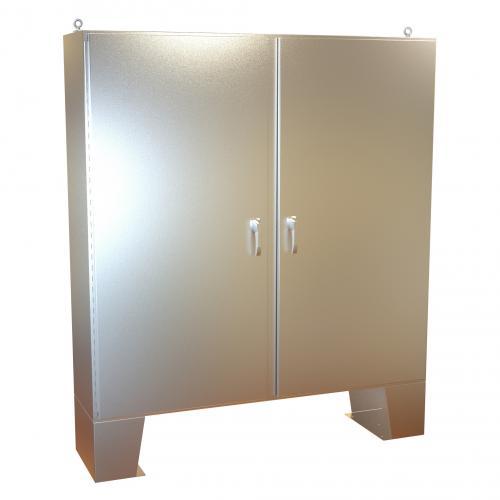

Hammond Manufacturing HN4FM727218SS Enclosure
Part Number # HN4FM727218SS
SKU # 2359120
$12473.36 / Each
Typical price:$23425.58 / Each
Hammond Manufacturing HN4FM727218SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HN4FM727218SS |
| SKU #: | 2359120 |
| Capacity: | 93312 cu-in |
| Finish: | Brushed |
| NEMA Rating: | NEMA 3R/4X/12/13/IP66 |
| Panel Size: | 68 in L x 68 in W |
| Series: | HN4 FM SS |
| Type: | 2-Door |
| Country of origin: | CA |
| Depth: | 18 in |
| Height: | 72 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Floor |
| Width: | 72 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980142166 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12473.36 / Each
Typical price:$23425.58 / Each
Quantity:
- Hammond Enclosure, 2-Door, Series: HN4 FM SS, 72 in Width, 18 in Depth, 72 in Height, NEMA 3R/4X/12/13/IP66 NEMA Rating, Hinged Cover, 68 in L x 68 in W Panel, Lock: 3-Point/Padlock, 93312 cu-in Capacity, Floor Mounting, 304 Stainless Steel, Brushed
HN4FM727218SS Application
House Electrical, Electronic, Hydraulic, Pneumatic Controls and Instrument ApplicationsHN4FM727218SS Item Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles
- Doors are supported with heavy gauge continuous hinges
- Seamless poured in place gasket
- Center post is removable for easy installation of the inner panel
- 12 in floor stands are welded to the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door
HN4FM727218SS Standards
CSA Certified|CE Certified|RoHS Compliant|IEC 60529|UL 508ASKU #2359120Part Number #HN4FM727218SSUNSPSC39121324UPC00623980142166
