Part Number # HN4FM727224S16
SKU # 2415681
HN4FM727224S16
Hammond Manufacturing HN4FM727224S16 Enclosure
Part Number # HN4FM727224S16
SKU # 2415681
Hammond Manufacturing HN4FM727224S16 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HN4FM727224S16 |
| SKU #: | 2415681 |
| Capacity: | 128330.91 cu-in |
| NEMA Rating: | NEMA 3R/4X/13 |
| Series: | HN4 FM SS |
| Depth: | 24.69 in |
| Height: | 72.13 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398063766 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Manufacturing HN4FM727224S16 Enclosure
Brand: Hammond Manufacturing
Part Number: HN4FM727224S16
Hammond® Enclosure, 2-Door, Series: HN4 FM SS, 72.06 in Width, 24.69 in Depth, 72.13 in Height, NEMA 3R/4X/13 NEMA Rating, Continuous Hinged Cover, 68 in W x 68 in H Panel, Lock: 3-Point Padlock Handle, 128330.91 cu-in Capacity, Floor Mounting, 316 Stainless Steel, Brushed
Additional Description: HAMM-HN4FM727224S16 N4S16 FLOORMT 72X72X24 W/HNDL INCLUDES SUB PANEL
Catalog Description: N4X 3-pt Dbl Door Floormount Encl w/panel - 72 x 72 x 24 - 316 SS
HN4FM727224S16 Application
For housing electrical, electronic, hydraulic or pneumatic controls and instrumentsHN4FM727224S16 Includes
Removable 10 ga Inner PanelHN4FM727224S16 Item Features
- Formed 12 ga 316 stainless steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles
- Doors are supported with heavy gauge continuous hinges
- New three-point padlocking door handle
- Seamless poured in place gasket
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door
- Center post is removable for easy installation of the inner panel
- 12 in floor stands are welded to the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
HN4FM727224S16 Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508AHN4FM727224S16 Warranty
1 YearSKU #2415681Part Number #HN4FM727224S16UNSPSC39121324UPC00062398063766

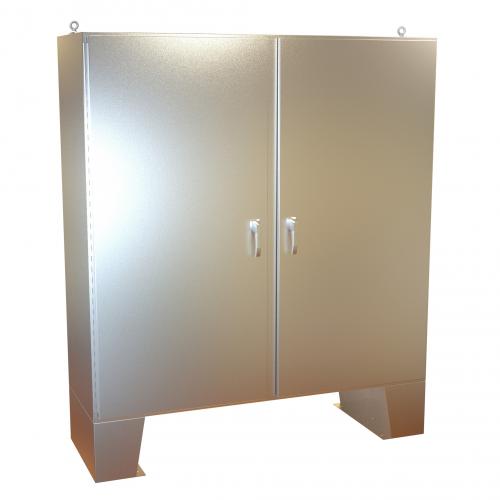

Image provided may only be a representation of final product and may include optional equipment
