Hammond Manufacturing HW242412GYHK
Part Number # HW242412GYHK
SKU # 2467295
HW242412GYHK
Hammond Manufacturing HW242412GYHK
Part Number # HW242412GYHK
SKU # 2467295
$713.69 / Each
Typical price:$1077.52 / Each
Hammond Manufacturing HW242412GYHK Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HW242412GYHK |
| SKU #: | 2467295 |
| Capacity: | 6912 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 3R/4/12/IP66 |
| Series: | HWHK |
| Country of origin: | CA |
| Depth: | 12 in |
| Height: | 24 in |
| Material: | 14 ga Mild Steel |
| Mounting type: | Wall |
| Width: | 24 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398005820 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$713.69 / Each
Typical price:$1077.52 / Each
Quantity:
- Hammond Enclosure, Series: HWHK, 24 in Width, 12 in Depth, 24 in Height, NEMA 3R/4/12/IP66, Hinged Cover, Lock: Padlock, 6912 cu-in, Wall Mount, 14 ga Mild Steel, Powder Coated, Gray
HW242412GYHK Application
For used to enclose electrical and electronic equipment and protect against harsh, industrial environments for wall mount applicationsHW242412GYHK Item Features
- Continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- Powder coated black zinc die-cast pad lockable handle with three-point roller latching system secures door
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- Bonding stud provided on door and grounding stud installed in enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
- Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required
- https://vimeo.com/127490369
HW242412GYHK Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508ASKU #2467295Part Number #HW242412GYHKUNSPSC39121324UPC00062398005820

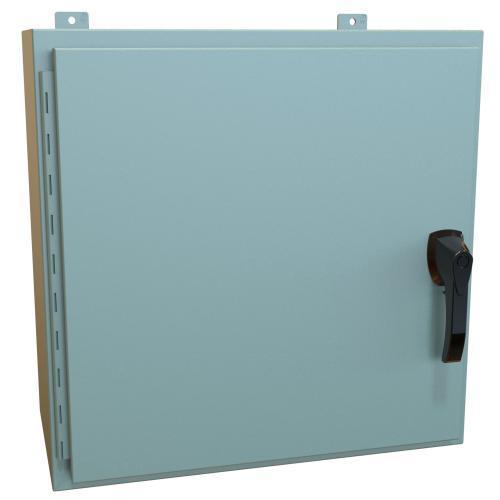

Image provided may only be a representation of final product and may include optional equipment
