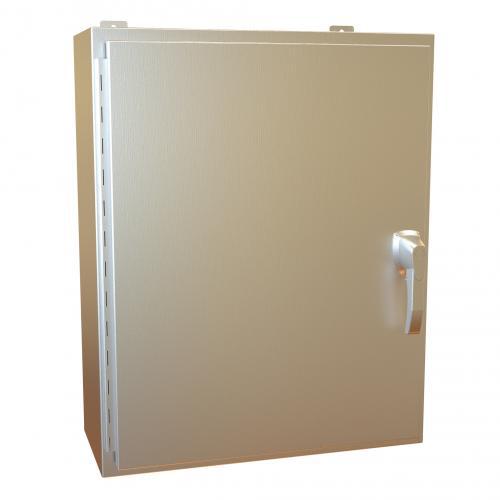

Hammond Manufacturing HW302410SSHK Enclosure
Part Number # HW302410SSHK
SKU # 2420090
$1856.90 / Each
Typical price:$3487.35 / Each
Hammond Manufacturing HW302410SSHK Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HW302410SSHK |
| SKU #: | 2420090 |
| Capacity: | 7200 cu-in |
| Finish: | Smooth Brushed/Unpainted |
| NEMA Rating: | NEMA 3R/4/4X/12/IP66 |
| Series: | HWSSHK |
| Country of origin: | CA |
| Depth: | 10 in |
| Height: | 30 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 24 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398010114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1856.90 / Each
Typical price:$3487.35 / Each
Quantity:
- Hammond Enclosure, Series: HWSSHK, 24 in Width, 10 in Depth, 30 in Height, NEMA 3R/4/4X/12/IP66, Hinged Cover, Lock: 3-Point Roller Latch with Handle/Padlock, 7200 cu-in, Wall Mount, 304 Stainless Steel, Smooth Brushed/Unpainted
HW302410SSHK Application
For used to enclose electrical and electronic equipment and protect against harsh, industrial environments for wall mount applicationsHW302410SSHK Item Features
- Continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- 316 Stainless pad lockable handle with three-point roller latching system secures door
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- Bonding stud provided on door and grounding stud installed in enclosure
- Provides high level of protection where equipment is hosed down or otherwise be exposed to wet conditions where corrosion is a serious problem
- Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required
- https://vimeo.com/127490369
HW302410SSHK Standards
CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL ListedSKU #2420090Part Number #HW302410SSHKUNSPSC39121324UPC00062398010114
