Part Number # N1WS24208
SKU # 2361420
N1WS24208
Hammond Manufacturing N1WS24208 Enclosure
Part Number # N1WS24208
SKU # 2361420
$262.79 / Each
Typical price:$444.73 / Each
Hammond Manufacturing N1WS24208 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | N1WS24208 |
| SKU #: | 2361420 |
| Series: | N1W S |
| Depth: | 8.16 in |
| Height: | 25-1/2 in |
| Material: | Mild Steel |
| Width: | 20.28 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980416625 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$262.79 / Each
Typical price:$444.73 / Each
Quantity:
Hammond Manufacturing N1WS24208 Enclosure
Brand: Hammond Manufacturing
Part Number: N1WS24208
Hammond Enclosure, 3-Piece, Series: N1W S, 20.28 in Width, 8.16 in Depth, 25-1/2 in Height, NEMA 1 NEMA Rating, Hinged Cover, Lock: Quarter-Turn Latch, 3840 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Additional Description: HAMM-N1WS24208 SURFACE MTG ENCL 24X20X8
Catalog Description: N1 Surface Mount Encl - 24 x 20 x 8 - Steel/Gray
N1WS24208 Application
Indoor ApplicationsN1WS24208 Item Features
- Three piece assembly consisting of a base, wrapper and door
- Components are attached and secured with metal screws
- 14 ga reverse formed base provides clearance for mounting hardware
- Wrapper is formed from 16 ga steel with no knock-outs in the sides
- Door assembly formed from 16 ga steel
- Removable door is mounted on slip hinges
- A bonding stud is provided on the door and a grounding screw is provided for the enclosure
- Door is fastened with a slotted quarter-turn latch
- Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door
N1WS24208 Standards
CSA Certified|IEC 60529|RoHS Compliant|UL 50SKU #2361420Part Number #N1WS24208UNSPSC39121324UPC00623980416625

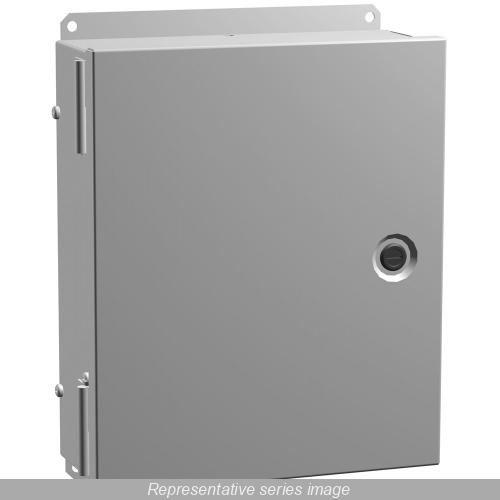

Image provided may only be a representation of final product and may include optional equipment
