Part Number # PCJ201610CCNLF
SKU # 2418614
Image Disclaimers Message
PCJ201610CCNLF

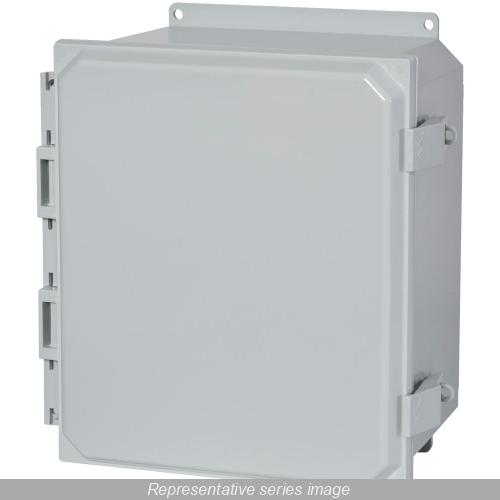

Hammond Manufacturing PCJ201610CCNLF Hammond
Part Number # PCJ201610CCNLF
SKU # 2418614
$311.38 / Each
Typical price:$383.61 / Each
Hammond Manufacturing PCJ201610CCNLF Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PCJ201610CCNLF |
| SKU #: | 2418614 |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X/12/13 |
| Panel Size: | 18.88 in H x 14.88 in W |
| Series: | PCJ Series |
| Temperature Rating (Degrees F): | -35 to 130 deg C |
| Type: | Non-Metallic |
| Color: | Light gray |
| Country of origin: | US |
| Depth: | 10.13 in |
| Height: | 19.76 in |
| Material: | Polycarbonate |
| Mounting type: | Flange Bracket |
| Width: | 15.98 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398043489 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$311.38 / Each
Typical price:$383.61 / Each
Quantity:
- Hammond, PCJ201610CCNLF, Junction Box, Non-Metallic, Series: PCJ Series, 19.76 in Height, 15.98 in Width, 10.13 in Depth, NEMA 1/2/3/3R/4/4X/12/13 NEMA Rating, Hinged Cover, 18.88 in H x 14.88 in W Panel, Lock: Snap Latch, Flange Bracket Mounting, -35 to 130 deg C, Polycarbonate, Light Gray
PCJ201610CCNLF Application
For industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants and to insulate and protect controls and components in both indoor and outdoor conditionsPCJ201610CCNLF Includes
Mounting HardwarePCJ201610CCNLF Item Features
- Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel 316 screw fasteners
- Door fasteners include a provision for padlocking on Snap Latches
- Enclosure available with clear Polycarbonate cover
- Molded hinge
- Captive oil resistant gasket provides a positive seal
- Impact index of 16 J (12 ft/lb)
PCJ201610CCNLF Standards
REACH Compliant|cULus Listed|CE Marked|IEC 60529, IP669|UL 508A|RoHS CompliantPCJ201610CCNLF Warranty
1 YearSKU #2418614Part Number #PCJ201610CCNLFUNSPSC39121324UPC00062398043489
