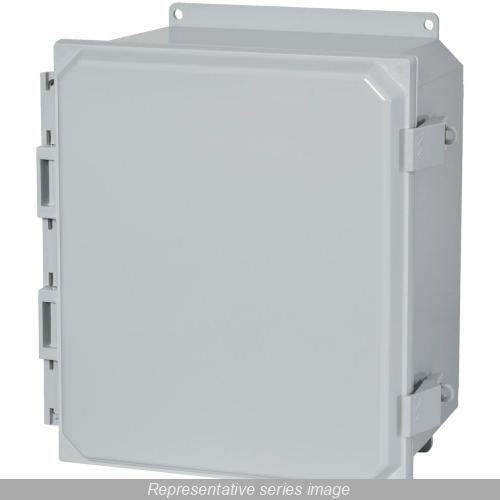

Hammond Manufacturing PCJ443NL Junction Box
Part Number # PCJ443NL
SKU # 2440672
$52.00 / Each
Typical price:$64.07 / Each
Hammond Manufacturing PCJ443NL Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PCJ443NL |
| SKU #: | 2440672 |
| NEMA Rating: | NEMA 1/2/3/4/4X/12/13 |
| Panel Size: | 3.56 in W x 3.56 in H |
| Series: | PCJ Series |
| Temperature Rating (Degrees F): | -31 to 266 deg F |
| Color: | Light gray |
| Country of origin: | US |
| Depth: | 3 in |
| Height: | 4 in |
| Material: | Polycarbonate Thermoplastic |
| Mounting type: | Feet Bracket/Wall |
| Width: | 4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398043453 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$52.00 / Each
Typical price:$64.07 / Each
Quantity:
- Hammond Junction Box, Series: PCJ Series, 4 in Height, 4 in Width, 3 in Depth, NEMA 1/2/3/4/4X/12/13 NEMA Rating, Solid Non-Metallic Snap Latch/Hinged Cover, 3.56 in W x 3.56 in H Panel, Lock: Padlock Hasp, Feet Bracket/Wall Mounting, -31 to 266 deg F, Polycarbonate Thermoplastic, Light Gray
PCJ443NL Application
For use to insulate and protect controls and components in both indoor and outdoor conditions, industrial pump controls, waste water, irrigation control along with solar/wind and chemical plantsPCJ443NL Includes
Mounting HardwarePCJ443NL Item Features
- Injection molded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel 316 screw fasteners
- Door fasteners include a provision for padlocking on snap latches
- Molded hinge with 316 stainless steel pin
- Captive oil-resistant gasket provides a positive seal
- Available with Polycarbonate foot mount brackets for multi-directional mounting
- Impact index of 16 J (12 ft-lb)
PCJ443NL Standards
cCSAus Certified|CE Certified|CSA Certified|cULus Listed|ECCN EAR99|IEC 60529|REACH Compliant|RoHS Compliant|UL 508A|UL 746C|UL 94 V-0 Flammability RatingPCJ443NL Warranty
1 yearSKU #2440672Part Number #PCJ443NLUNSPSC39121324UPC00062398043453
