Brand: Hammond Manufacturing
PJ12106P20

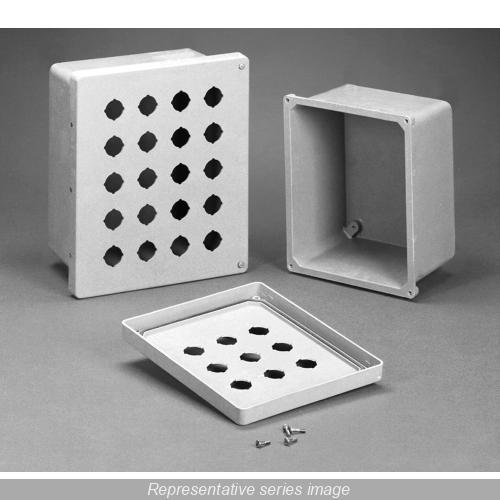

Hammond Manufacturing PJ12106P20 Pushbutton Enclosure
Part Number # PJ12106P20
SKU # 2390672
$185.44 / Each
Typical price:$228.46 / Each
Hammond Manufacturing PJ12106P20 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PJ12106P20 |
| SKU #: | 2390672 |
| NEMA Rating: | NEMA 1/2/3/4/4X/12/13 |
| Number of Outlets: | 20 |
| Panel Size: | 10.75 in L x 8.88 in W |
| Series: | PJPBLC |
| Temperature Rating (Degrees F): | -40 to 266 deg F |
| Type: | Non-Metallic |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 6.13 in |
| Length: | 12.13 in |
| Material: | Fiberglass Polyester |
| Mounting type: | Bracket/Wall |
| Width: | 10.26 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398095201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$185.44 / Each
Typical price:$228.46 / Each
Quantity:
- Hammond Pushbutton Enclosure, Non-Metallic, Series: PJPBLC, 12.13 in Length, 10.26 in Width, 6.13 in Depth, NEMA 1/2/3/4/4X/12/13, Lift-Off Cover, 10.75 in L x 8.88 in W Panel, 20 Outlets, Bracket/Wall Mount, -40 to 266 deg F, Fiberglass Polyester, Gray
PJ12106P20 Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures ApplicationsPJ12106P20 Item Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Cover is fastened with captive stainless steel screws in threaded brass inserts
- Captive oil resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure
- Enhanced UV inhibitors protect against outdoor weathering
- Impact index of 5 ft/lb
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
PJ12106P20 Standards
CSA Certified|IEC 60529|UL 508A|RoHS CompliantSKU #2390672Part Number #PJ12106P20UNSPSC39121326UPC00062398095201
