Part Number # PJ20168HW
SKU # 2367706
PJ20168HW
Hammond Manufacturing PJ20168HW Junction Box
Part Number # PJ20168HW
SKU # 2367706
$613.09 / Each
Typical price:$755.32 / Each
Hammond Manufacturing PJ20168HW Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PJ20168HW |
| SKU #: | 2367706 |
| Capacity: | 2601.6 cu-in |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Panel Size: | 14.44 in W x 18.44 in H |
| Depth: | 8.13 in |
| Material: | Polyester Plastic |
| UNSPSC: | 39121324 |
| UPC: | 00623980415819 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$613.09 / Each
Typical price:$755.32 / Each
Quantity:
- Hammond Junction Box, Series: PJ Series, 20 in Height, 16 in Width, 8.13 in Depth, NEMA 1/2/3/3R/4/4X/12/13/IP66 NEMA Rating, Hinged Screw Cover, 14.44 in W x 18.44 in H Panel, Lock: Padlock, 2601.6 cu-in Capacity, Wall Mounting, -40 to 266 deg F, Polyester Plastic, Light Gray
PJ20168HW Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures and ideal in applications with high temperatures or highly corrosive environmentsPJ20168HW Includes
Mounting HardwarePJ20168HW Item Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel draw type "snap latch" door fasteners
- Door fasteners include a provision for padlocking
- Door is supported with a continuous stainless steel hinge
- Captive oil-resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure
- Impact index of 5 ft/lb
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
PJ20168HW Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508APJ20168HW Warranty
1 YearSKU #2367706Part Number #PJ20168HWUNSPSC39121324UPC00623980415819

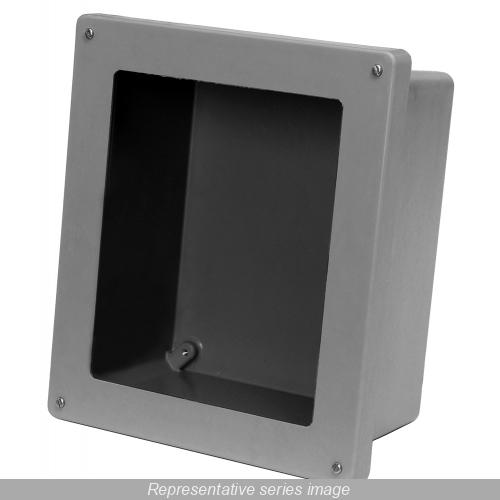

Image provided may only be a representation of final product and may include optional equipment
