Part Number # PJ744P221
SKU # 2409388
Image Disclaimers Message
Brand: Hammond Manufacturing
PJ744P221

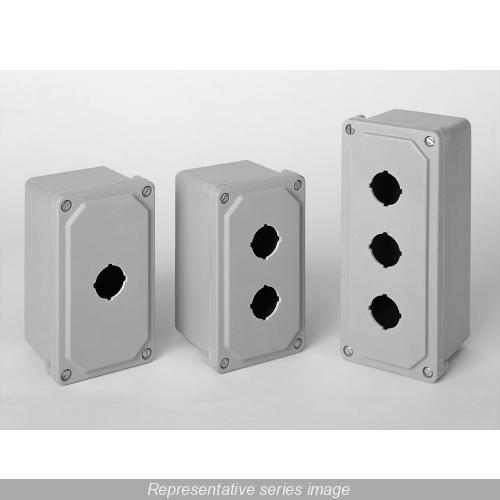

Hammond Manufacturing PJ744P221 Pushbutton Enclosure
Part Number # PJ744P221
SKU # 2409388
$70.75 / Each
Typical price:$87.16 / Each
Hammond Manufacturing PJ744P221 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PJ744P221 |
| SKU #: | 2409388 |
| Capacity: | 102.7742 cu-in |
| NEMA Rating: | NEMA 4/4X/13 |
| Series: | PJPB |
| Temperature Rating (Degrees F): | -40 to 266 deg F |
| Type: | 1-Hole |
| Country of origin: | US |
| Depth: | 3.88 in |
| Length: | 6.74 in |
| Material: | Polyester |
| Mounting type: | Wall |
| Width: | 3.93 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00062398021646 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$70.75 / Each
Typical price:$87.16 / Each
Quantity:
- Hammond Pushbutton Enclosure, 1-Hole, Series: PJPB, 6.74 in Length, 3.93 in Width, 3.88 in Depth, NEMA 4/4X/13 NEMA Rating, Screw Cover, 102.7742 cu-in Capacity, Wall Mounting, -40 to 266 deg F, Polyester, Light Gray
PJ744P221 Application
For standard pushbuttons, switches and pilot lightsPJ744P221 Item Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel
- Cover is fastened with captive stainless steel screws in threaded brass inserts
- Captive oil-resistant gasket provides a positive seal
- Mounting through rear holes on enclosure
- Enhanced UV inhibitors protect against outdoor weathering
- Impact index of 6.78 J (5 ft/lb)
- Use #8 x 1 in screw (not included)
- Provides protection from dirt, dust, oil and water
PJ744P221 Standards
CSA Certified|IEC 60529|RoHS Compliant|UL 508ASKU #2409388Part Number #PJ744P221UNSPSC39121326UPC00062398021646
